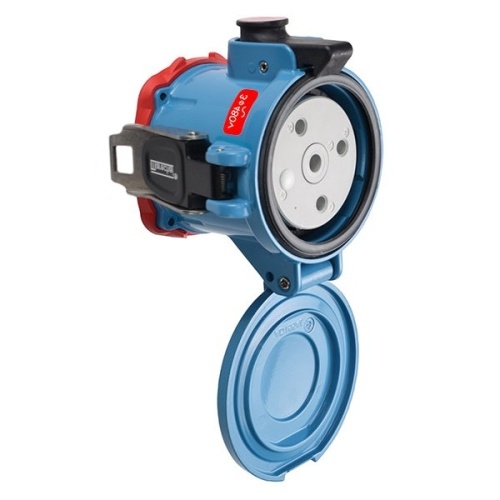

Meltric 39-94243-K04-MR3 DR150 RECEPTACLE METAL BLUE SIZE 5 TYPE 4X IP 69 3P+G 150 A 480 VAC 60 Hz NO AUX
Normally In Stock
Code: 762348
Meltric 39-94243-K04-MR3 DR150 RECEPTACLE METAL BLUE SIZE 5 TYPE 4X IP 69 3P+G 150 A 480 VAC 60 Hz NO AUX
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$1396.69
Sale Price
$1163.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 39-94243-K04-MR3 DR150 RECEPTACLE METAL BLUE SIZE 5 TYPE 4X IP 69 3P+G 150 A 480 VAC 60 Hz NO AUX
Specifications
Receptacle Composition
Metal
Receptacle Color
Blue
Receptacle Voltage
480 VAC
Receptacle Contact Configuration
3P+G
Receptacle Amperage
150 Amp
Receptacle Size
Size 5
Manufacturer
Meltric
Meltric Series
DR150
Component
Receptacle
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 3R or Type 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence. See pg. 8
