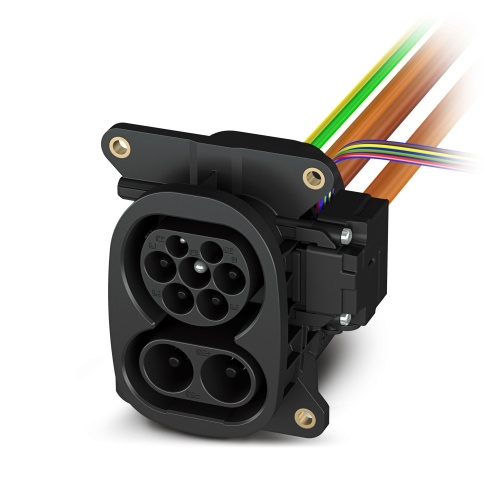

Phoenix Contact 1211210 Vehicle charging inlet CHARX T2HBI24-3AC32DC125-2,0M2
Normally In Stock
Code: 737877
Phoenix Contact CHARX T2HBI24-3AC32DC125-2,0M2 - Charging Inlet, 250 kW, 500 Amp, AC/DC CCS Typ 2, Mode 2, 3, 4 - 1211210
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$913.73
Sale Price
$761.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

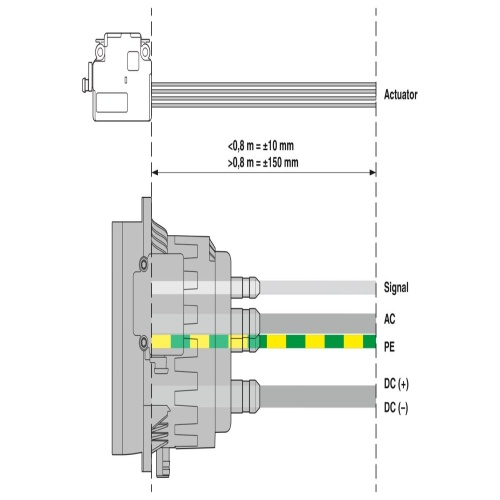

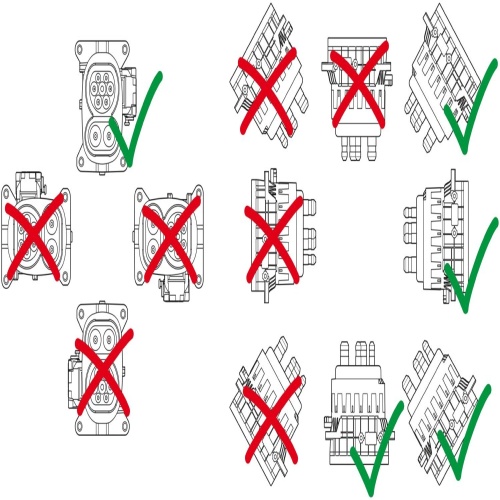

Phoenix Contact 1211210 The CHARX connector supports universal charging systems, featuring a vehicle inlet that can handle up to 500A in boost mode and 125A permanently, with compatibility for both alternating current (AC) and direct current (DC) charging. It comes equipped with single wires of length 2m and is mounted using M6 screws, allowing for front and rear placement options, with a black housing that adheres to IEC standards 62196-2 and 62196-3.
Specifications
Manufacturer
Phoenix Contact
Amperage
500 Amp
Component
Charging Inlet
Charging Cable Length
1 M
Max Power Per Charging Point
250 Kw
Features
Complete product range
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001

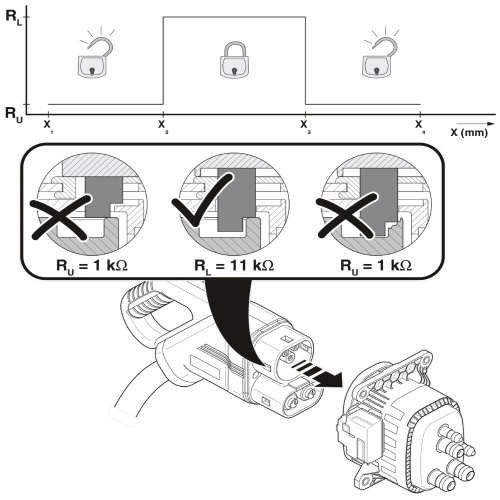

Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
