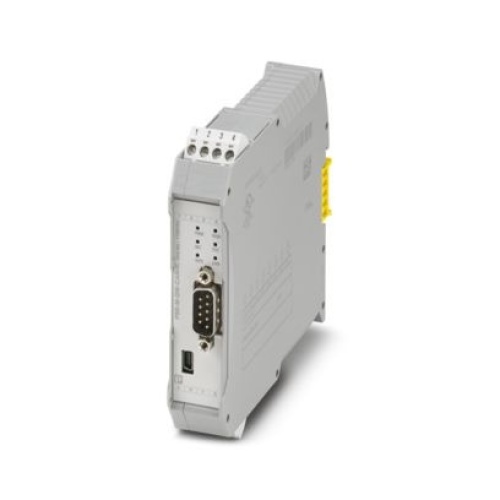

PSR-M-GW-CAN-SC Phoenix Contact 1105104 Data interface
PSR-M-GW-CAN-SC Phoenix 1105104 Data interface
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $504.29
Sale Price:
$420.24
Gateway for connecting a PSR-M base module to a higher-level controller, CANopen , TBUS interface, plug-in screw terminal block, TBUS connector included
| Specifications | |
| Safety Connection Method | Screw connection |
| Safety Degree of Protection | IP20 |
| Safety Interfaces | TBUS |
| Safety Connection Method | USB 2.0 Hi-Speed |
| Safety Connection Method | D-SUB-9 female connector |
| Safety Network Interface | CANopen |
| Safety Transmission Speed | 1 Mbps |
| Component | Gateways-Proxies |
| Manufacturer | Phoenix Contact |
| Sub Component | Data interface |
| Safety Relay Supply Voltage | 31 VDC -20 % - +20 % (external fuse typically 4 A) |
- Low housing width of just 22.6 mm
- Fast startup, thanks to easy hardware and software configuration
- Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
- Cost-effective safety solution with a high level of adaptability to individual requirements
