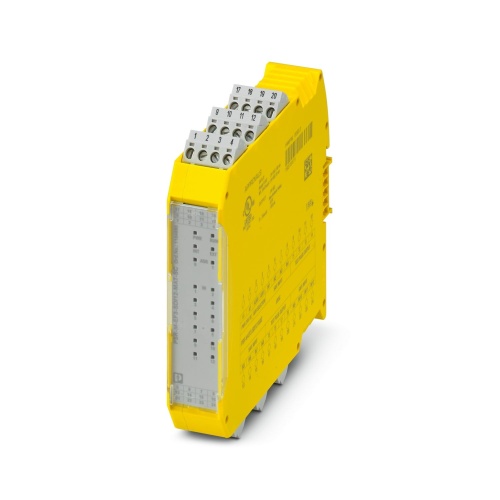

Phoenix Contact 1104885 Extension module PSR-M-EF3-SDI12-MAT-SC
Normally In Stock
Code: 73011
PSR-M-EF3-SDI12-MAT-SC Phoenix 1104885 Extension module
Condition: New
Usually ships Same Day or Next Day$453.59
Sale Price
$377.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1104885 This safe extension module offers 12 secure input points for monitoring safety shutdown systems, features a TBUS interface, and is certified up to SIL 3, Cat. 4/PL e, with additional convenience provided by a plug-in screw terminal block and included TBUS connector.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Interfaces
TBUS
Component
Extension Module
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Low housing width of just 22.6 mm
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Cost-effective safety solution with a high level of adaptability to individual requirements
Up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
