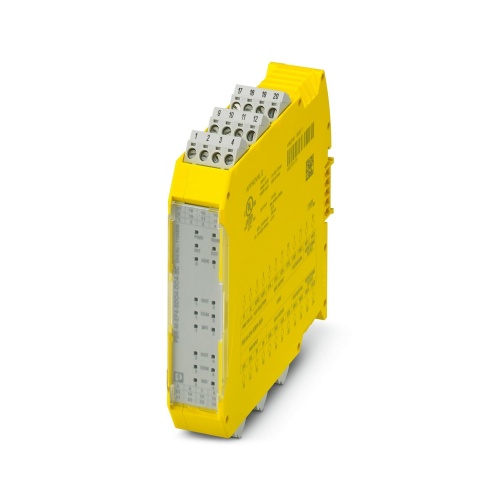

Phoenix Contact 1104856 Extension module PSR-M-EF4-SDO4-DO4-SC
Normally In Stock
Code: 73002
PSR-M-EF4-SDO4-DO4-SC Phoenix 1104856 Extension module
Condition: New
Usually ships Same Day or Next Day$453.59
Sale Price
$377.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1104856 This safe extension module features four isolated safe outputs, four reset inputs, and four signal outputs, as well as a TBUS interface for bus connection, and comes equipped with a plug-in screw terminal block and TBUS connector for easy integration.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Interfaces
TBUS
Component
Extension Module
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Low housing width of just 22.6 mm
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Cost-effective safety solution with a high level of adaptability to individual requirements
Up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
