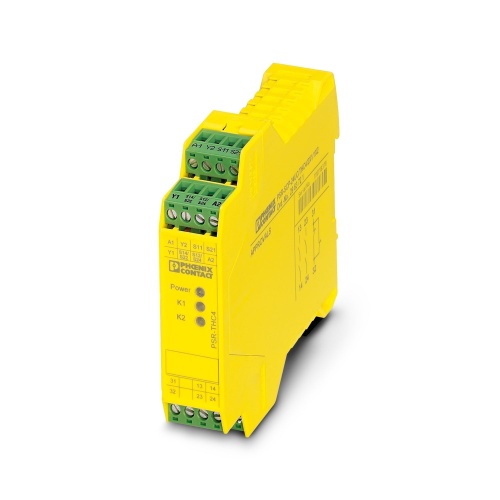

Phoenix Contact 2963721 Safety relays PSR-SCP- 24UC/THC4/2X1/1X2
Normally In Stock
Code: 72938
PSR-SCP- 24UC/THC4/2X1/1X2 Phoenix 2963721 Safety relays
Condition: New
Usually ships Same Day or Next Day$432.79
Sale Price
$360.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2963721 A safety relay designed for two-hand control devices complies with ISO 13851 type IIIC to SIL 3 or Cat 4 standards, also meeting EN ISO 13849 requirements for PL e classification, featuring synchronous activation monitoring within a 0.5 second time frame and utilizing both N/O and N/C contacts, ensuring safe isolation, with a contact width of 22.5mm and a pluggable screw terminal block.
Specifications
Safety Contact Type
1 Signaling Current Path
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
2 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Input Voltage
24 Volt
Features
Synchronous activation monitoring < 0.5 s
Up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
2 channel control
For two-hand controls in accordance with ISO 13851 type IIIC
Automatic activation
Two enabling and one signaling current path
