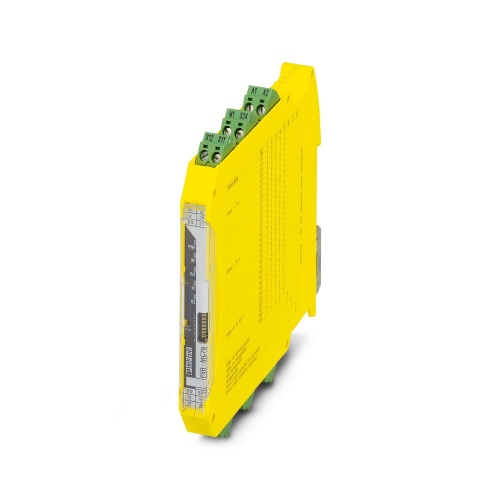

Phoenix Contact 2702094 Safety relays PSR-MC70-2NO-1DO-24DC-SC
Normally In Stock
Code: 72922
PSR-MC70-2NO-1DO-24DC-SC Phoenix 2702094 Safety relays
Condition: New
Usually ships Same Day or Next Day$229.69
Sale Price
$191.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2702094 A safety relay is designed to control emergency stop functions, as well as operate safety doors and light grids up to SIL level 1 standards, categorization as Cat. 1, PL c, with 1- or 2-channel operation available. It features cross-circuit detection and can be retriggered, allowing for off delay and on delay settings between 0.2 seconds and 60 seconds. The relay also has two enabling current paths and is compatible with a US voltage of 24V DC, utilizing a plug-in screw terminal block for easy installation.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
2 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 1
Safety Relay Supply Voltage
24 Volt
Features
2 enabling current paths, 1 digital signal output
Low housing width of just 12.5 mm
1- and 2-channel control
Depending on the application, up to cat. 4/PL e in accordance with ISO 13849-1, SIL CL 3 in accordance with EN IEC 62061
Manually monitored and automatic activation in a single device
Depending on the application, up to Cat. 3/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061
