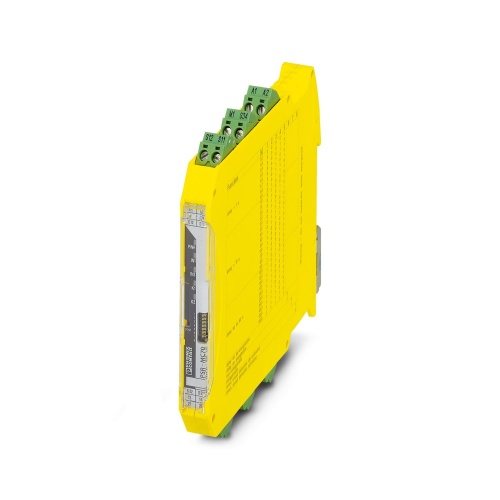

Phoenix Contact 2702095 Safety relays PSR-MC70-2NO-1DO-24DC-SP
Normally In Stock
Code: 72840
PSR-MC70-2NO-1DO-24DC-SP Phoenix 2702095 Safety relays
Condition: New
Usually ships Same Day or Next Day$306.82
Sale Price
$255.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2702095 A safety relay for emergency stop and safety doors is available with a light grid that meets SIL levels up to 1, categorized as Cat 1, PL e, and can be operated with 1 or 2 channels. It features cross-circuit detection, can be retriggered, has a fall back/on delay of 0.2-60 seconds, and includes two enabling current paths. The relay is powered by a US power source of 24V DC and utilizes a pluggable Push-in terminal block.
Specifications
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Safety Contact Type
2 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 1
Safety Relay Supply Voltage
24 Volt
Features
2 enabling current paths, 1 digital signal output
Low housing width of just 12.5 mm
1- and 2-channel control
Depending on the application, up to cat. 4/PL e in accordance with ISO 13849-1, SIL CL 3 in accordance with EN IEC 62061
Manually monitored and automatic activation in a single device
Depending on the application, up to Cat. 3/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061
