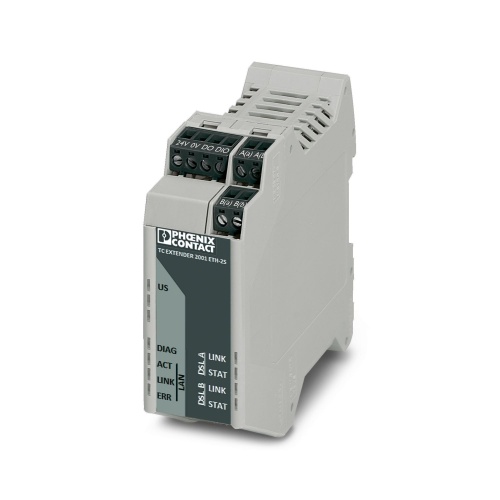

TC EXTENDER 2001 ETH-2S Phoenix Contact 2702409 Modem Router, 10/100Base-T(X) in accordance with IEEE 802.3,
TC EXTENDER 2001 ETH-2S Phoenix 2702409 Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3,Ethernet,SHDSL interface according to ITU-T G.991.2.bis,USB 2.0 Ethernet:1,SHDSL interface according to ITU-T G.991.2.bis:2 (2-wire operation), COMBICON plug-in screw terminal block,RJ45 socket, shielded,2 x 2-pos. COMBICON plug-in screw terminal blocks,Mini-USB type B, 5-pos. PA 6.6-FR Modem Modem
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $1439.10
Sale Price:
$1208.84

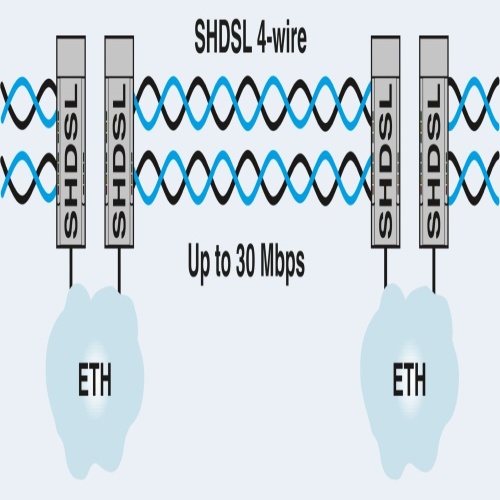

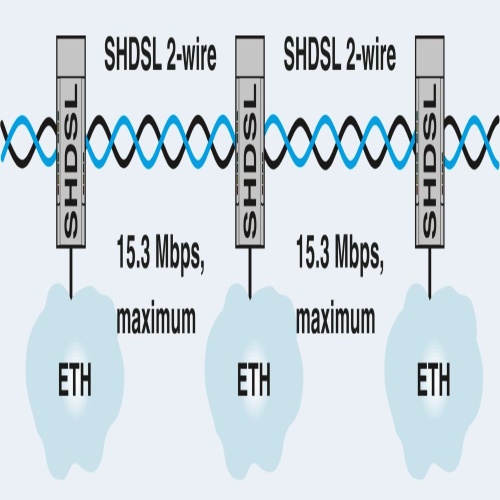

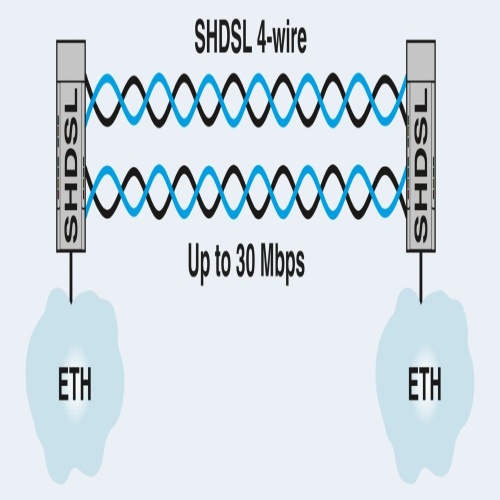

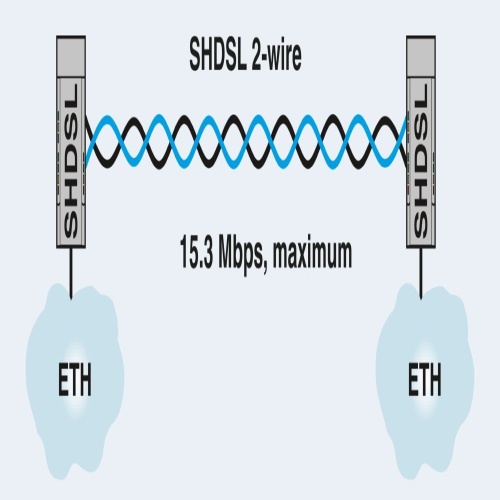

Second generation: Unmanaged Ethernet extender for point-to-point connections, line and ring structures, data rates up to 30 Mbps, distances of up to 20 km on in-house copper cables, diagnostics via USB and LEDs, 2 SHDSL ports, 1 LAN port
| Specifications | |
| Communication Interface | Ethernet |
| Communication Equipment Type | Managed |
| Communication Approval | CE:CE-compliant |
| Communication Approval | Corrosive gas test:ISA-S71.04-1985 G3 Harsh Group A |
| Communication Interface | Ethernet interface |
| Communication Interface | 10-100Base-T(X) in accordance with IEEE 802.3 |
| Communication Approval | UL |
| Communication Ports | Ethernet:1 |
| Communication Approval | ATEX: II 3 G Ex nA IIC T4 Gc X |
| Communication Approval | USA-Canada:508 Listed |
| Communication Interface | SHDSL interface according to ITU-T G.991.2.bis |
| Communication Connection Method | RJ45 socket |
| Communication Connection Method | shielded |
| Communication Transmission Length | < 100 m (shielded twisted pair) |
| Communication Ports | SHDSL interface according to ITU-T G.991.2.bis:2 (2-wire operation) |
| Communication Interface | USB 2.0 |
| Communication Connection Method | COMBICON plug-in screw terminal block |
| Communication Connection Method | 2 x 2-pos. COMBICON plug-in screw terminal blocks |
| Communication Connection Method | Mini-USB type B |
| Communication Connection Method | 5-pos. |
| Component | Modem Router |
| Manufacturer | Phoenix Contact |
| Communication Degree of Protection | IP20 |
