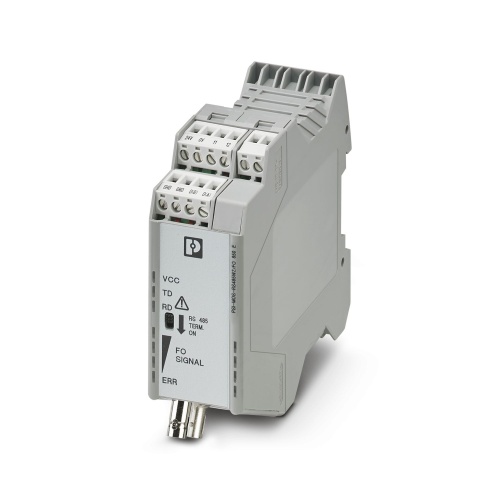

Phoenix Contact 2708339 FO converters PSI-MOS-RS485W2/FO 850 E
Normally In Stock
Code: 72680
PSI-MOS-RS485W2/FO 850 E Phoenix 2708339 RS-485 interface, 2-wire COMBICON plug-in screw terminal block,Pluggable screw connection,B-FOC (ST) PA 6.6-FR FO converters FO converters
Condition: New
Usually ships Same Day or Next Day$1160.05
Sale Price
$966.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

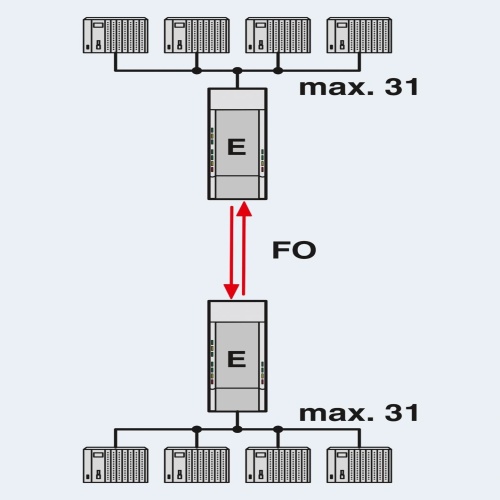

Phoenix Contact 2708339 A FO converter with integrated optical diagnostics and alarm contact is available for use in RS-485 2-wire bus systems like SUCONET K and Modbus, supporting data transfer rates up to 500 kbps via NRZ coding, along with a terminal device that utilizes one FO interface (BFOC) at a wavelength of 850 nm, compatible with PCF/fiberglass cable for multimode applications.
Specifications
Communication Ambient Temperature
-20 °C - 60 °C
Communication Approval
CE:CE-Compliant
Communication Approval
Corrosive Gas Test:ISA-S71.04-1985 G3 Harsh Group A
Communication Approval
UL
Communication Approval
USA-Canada:Class I
Communication Approval
Zone 2
Communication Approval
Div. 2
Communication Approval
Groups A
Communication Approval
B
Communication Approval
C
Communication Approval
D
Communication Approval
EAC:EAC
Communication Approval
ATEX: II 3 G Ex Na Nc IIC T4 Gc X
Communication Interface
RS-485 Interface
Communication Connection Method
COMBICON Plug-In Screw Terminal Block
Communication Transmission Length
With Shielded
Communication Approval
Shipbuilding:DNV GL
Communication Connection Method
Pluggable Screw Connection
Communication Approval
ATEX: II (2) D [Ex Op Is Db] IIIC
Communication Approval
ATEX: II (2) G [Ex Op Is Gb] IIC
Communication Transmission Medium
Copper
Communication Approval
Aex Nc IIC T5
Communication Approval
Ex Nc Nl IIC T5 X
Communication Interface
2-Wire
Communication Connection Method
B-FOC (ST)
Communication Transmission Length
≤ 1200 M (Depending On The Data Rate
Communication Transmission Length
Twisted Data Cable)
Component
Media Converter
Manufacturer
Phoenix Contact
Communication Equipment Type
Unmanaged
Communication Degree of Protection
IP20
Features
Automatic data rate detection or fixed data rate setting via DIP switches
Supply voltage and data signals routed through the DIN rail connectors
Connections can be plugged in via a COMBICON screw terminal block
Can be combined with the PSI copper repeater in a modular way using DIN rail connectors
High-quality electrical isolation between all interfaces (RS-485 // fiber optic ports // power supply // DIN rail connector)
Redundant power supply possible by means of optional system power supply unit
Approved for use in zone 2
Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
Integrated optical diagnostics for continuous monitoring of FO paths
Floating switch contact for advance warning of critical FO paths
Suitable for data rates up to 500 kbps
Bit retiming for any cascading depth
Shipbuilding approval in accordance with DNV GL
