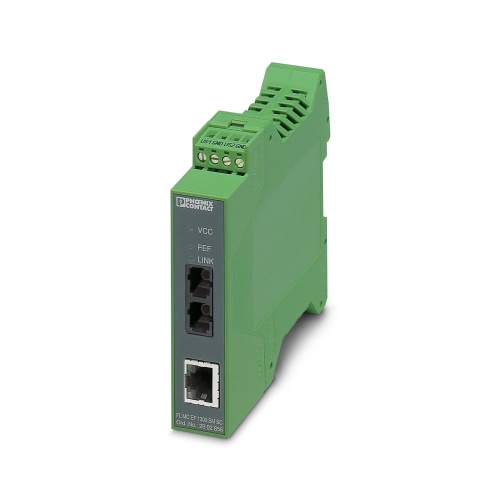

Phoenix Contact 2902856 FO converters FL MC EF 1300 SM SC
Normally In Stock
Code: 72679
FL MC EF 1300 SM SC Phoenix 2902856 Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3:1, Plug-in screw terminal block (COMBICON), redundancy possible,RJ45 socket, shielded,SC duplex PA 6.6-FR FO converters FO converters
Condition: New
Usually ships within 7-14 days. Call for ship time.$654.80
Sale Price
$545.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2902856 A FO converter with a SC duplex fiber optic connection at 1300 nm is used to convert 10/100Base-T(X) signals to single mode fiberglass with a 9/125 μm core diameter, featuring auto negotiation and auto MDI(X) functions for easy setup, along with comprehensive link diagnostics. This unit can be mounted on DIN-rail and requires an 18-30 V DC supply.
Specifications
Communication Approval
CE:CE-Compliant
Communication Approval
Corrosive Gas Test:ISA-S71.04-1985 G3 Harsh Group A
Communication Interface
Ethernet Interface
Communication Interface
10-100Base-T(X) In Accordance With IEEE 802.3
Communication Transmission Length
100 M (Shielded Twisted Pair)
Communication Approval
UL
Communication Approval
USA-Canada:Class I
Communication Approval
Zone 2
Communication Approval
Div. 2
Communication Approval
Groups A
Communication Approval
B
Communication Approval
C
Communication Approval
D
Communication Approval
Aex Na IIC T4
Communication Approval
Ex Na IIC T4 Gc X
Communication Approval
ATEX: II 3 G Ex Na IIC T4 Gc X
Communication Approval
USA-Canada:508 Listed
Communication Connection Method
RJ45 Socket
Communication Connection Method
Shielded
Communication Approval
EAC:EAC
Communication Approval
Shipbuilding:DNV GL
Communication Function
Store-And-Forward Media Converter
Communication Ports
Ethernet Interface
Communication Ports
10-100Base-T(X) In Accordance With IEEE 802.3:1
Communication Ambient Temperature
-40 °C - 65 °C
Communication Connection Method
Plug-In Screw Terminal Block (COMBICON)
Communication Connection Method
Redundancy Possible
Communication Connection Method
SC Duplex
Communication Transmission Medium
Copper
Component
Media Converter
Manufacturer
Phoenix Contact
Communication Equipment Type
Unmanaged
Communication Degree of Protection
IP20
Features
Link fault pass through (LFPT) and far end fault (FEF) functions for easy connection monitoring
Auto negotiation
Auto MDI/MDI-X switch-over
Transmission ranges up to 36 km
10/100 Mbps
Shipbuilding approval in accordance with DNV GL
Downloads
Phoenix 2902856 CAD data International.dxfPhoenix 2902856 CAD data International.pdfPhoenix 2902856 CAD data International.stpPhoenix 2902856 Data Sheet English-2.pdfPhoenix 2902856 Data Sheet English.pdfPhoenix 2902856 Manufacturers declaration English.pdfPhoenix 2902856 Manufacturers declaration International-2.pdfPhoenix 2902856 Manufacturers declaration International-3.pdfPhoenix 2902856 Manufacturers declaration International-4.pdfPhoenix 2902856 Manufacturers declaration International-5.pdfPhoenix 2902856 Manufacturers declaration International-6.pdfPhoenix 2902856 Manufacturers declaration International.pdfPhoenix 2902856 Package Slip International.pdfPhoenix 2902856 Tender Text English.zipPhoenix 2902856 Various English.pdfproduct drawing.dxfsimplified 3d model of the item.stp
