Phoenix Contact 2744461 Interface converter PSM-ME-RS232/RS232-P
Normally In Stock
Code: 72670
PSM-ME-RS232/RS232-P PSM-ME-RS232/RS232-P Phoenix Contact 2744461 V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1,V.24 (RS-232) interface
Condition: New
Usually ships Same Day or Next Day$582.01
Sale Price
$485.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2744461 A four-channel interface converter designed specifically for isolating and protecting RS-232 (also known as V.24) interfaces is available, allowing for secure connections in various environments while being easily mounted on a rail system.
Specifications
Conditioner Connection Type
Screw Connection
Component
Interface Converter
Manufacturer
Phoenix Contact
Features
Integrated surge protection with transient discharge to the DIN rail

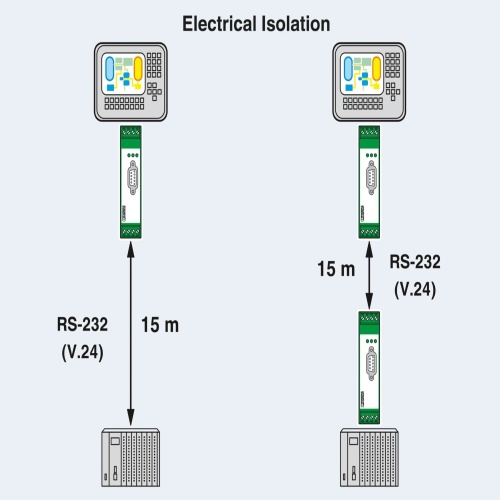

High-quality 3-way isolation up to 2 kV (VCC // RS-232 // RS-232)
In the case of variable cable lengths, the RS-232 connection on the field side can be established conveniently using plug-in screw terminal blocks
Mounting on standard EN DIN rails

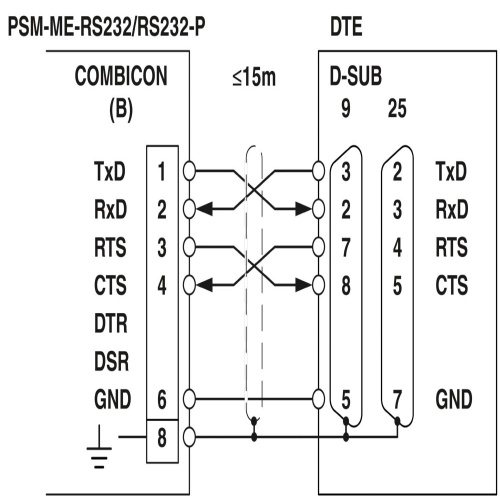

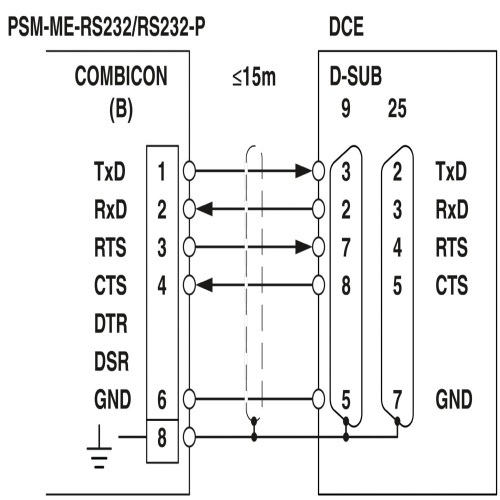

Transmission of TxD/RxD data channels and RTS/CTS control lines
24 V DC or AC power supply suitable for the control cabinet
Active data transmission indicated by separate data indicators for the transmit and receive channels
Maximum transmission speed of 115.2 kbps
Shipbuilding approval in accordance with DNV GL
Downloads
Phoenix 2744461 CAD data International.dxfPhoenix 2744461 CAD data International.pdfPhoenix 2744461 CAD data International.stpPhoenix 2744461 Data Sheet English.pdfPhoenix 2744461 Manufacturers declaration English.pdfPhoenix 2744461 Manufacturers declaration International-2.pdfPhoenix 2744461 Manufacturers declaration International-3.pdfPhoenix 2744461 Manufacturers declaration International-4.pdfPhoenix 2744461 Manufacturers declaration International-5.pdfPhoenix 2744461 Manufacturers declaration International.pdfPhoenix 2744461 Package Slip International.pdfPhoenix 2744461 Tender Text English.zipproduct drawing.dxfsimplified 3d model of the item.stp
