Phoenix Contact 2744458 Interface converter PSM-ME-RS232/TTY-P
Normally In Stock
Code: 72632
PSM-ME-RS232/TTY-P PSM-ME-RS232/TTY-P Phoenix Contact 2744458 V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1,TTY interface *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$582.01
Sale Price
$485.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2744458 An interface converter that enables conversion from RS-232 (V.24) communication protocol to TTY while providing electrical isolation and supporting multiple channels, can be mounted on a rail for added flexibility and ease of installation.
Specifications
Conditioner Connection Type
Screw Connection
Component
Interface Converter
Manufacturer
Phoenix Contact
Features
In the case of variable cable lengths, the TTY connection on the field side can be established conveniently using plug-in screw terminal blocks

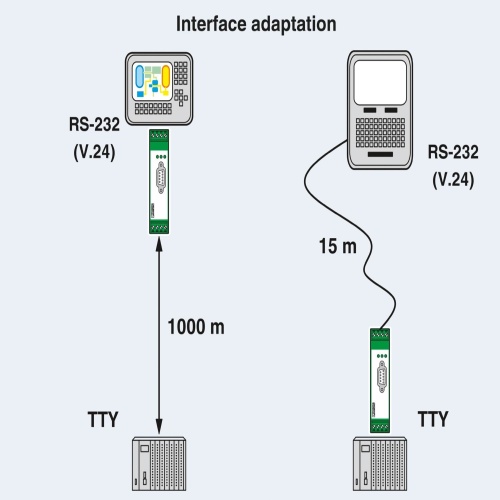

Transmission distances of up to 1000 m in active TTY mode

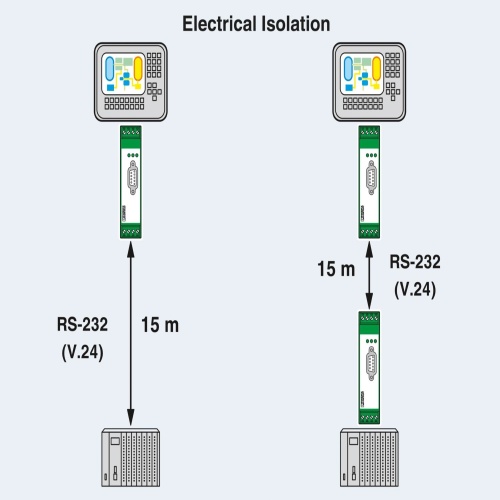

High-quality 3-way isolation up to 2 kV (VCC // RS-232 // TTY)

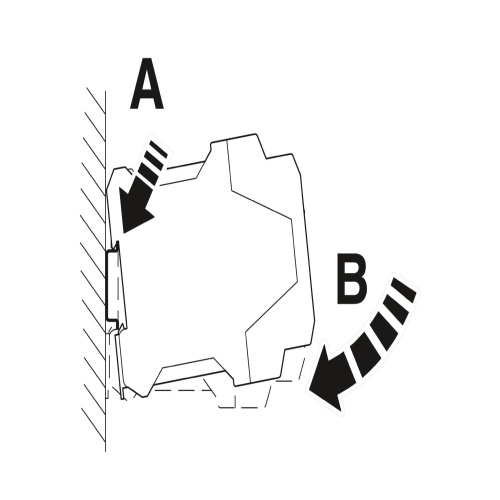

Mounting on standard EN DIN rails
Integrated surge protection with transient discharge to the DIN rail

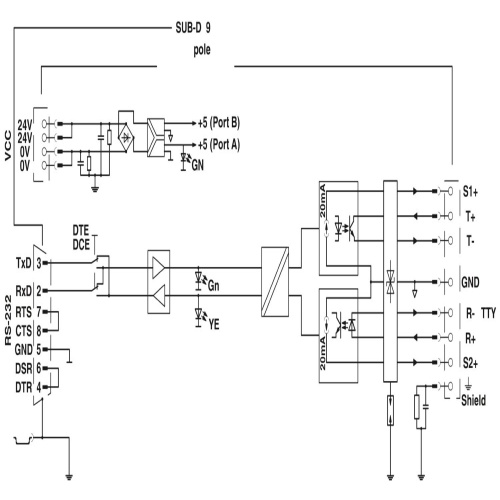

Conversion of RS-232 TxD/RxD full duplex data signals to the TTY current loop standard
Semi-active, active or passive TTY mode, depending on pin assignment
24 V DC or AC power supply suitable for the control cabinet
Active data transmission indicated by separate data indicators for the transmit and receive channels
RS-232 connection via 9-pos. D-SUB and standard RS-232 cable
Transmission speed of up to 19.2 kbps
Shipbuilding approval in accordance with DNV GL
Downloads
Phoenix 2744458 CAD data International.dxfPhoenix 2744458 CAD data International.pdfPhoenix 2744458 CAD data International.stpPhoenix 2744458 Data Sheet English.pdfPhoenix 2744458 Manufacturers declaration English.pdfPhoenix 2744458 Manufacturers declaration International-2.pdfPhoenix 2744458 Manufacturers declaration International-3.pdfPhoenix 2744458 Manufacturers declaration International-4.pdfPhoenix 2744458 Manufacturers declaration International-5.pdfPhoenix 2744458 Manufacturers declaration International.pdfPhoenix 2744458 Package Slip International.pdfPhoenix 2744458 Tender Text English.zipproduct drawing.dxfsimplified 3d model of the item.stp
