Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

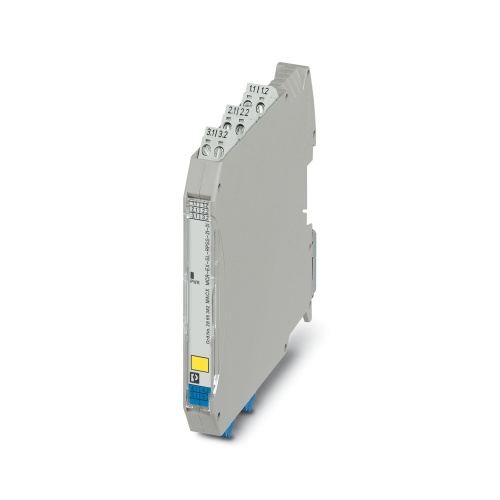

Phoenix Contact 2865382 Repeater power supply MACX MCR-EX-SL-RPSS-2I-2I
Normally In Stock
Code: 72392
MACX MCR-EX-SL-RPSS-2I-2I MACX MCR-EX-SL-RPSS-2I-2I Phoenix Contact 2865382 Input/output, power supply Signal isolator
Condition: New
Usually ships Same Day or Next Day$588.56
Sale Price
$490.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

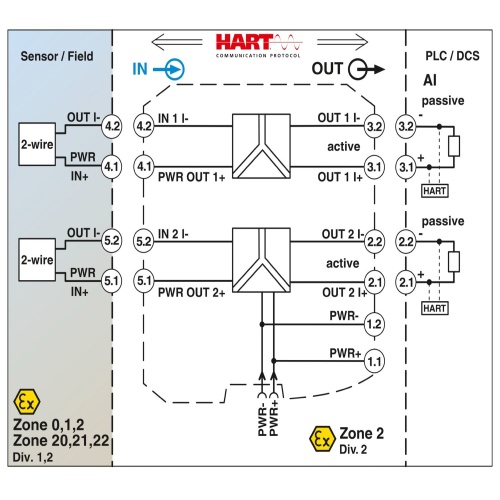

Phoenix Contact 2865382 A device used for transmitting signals between hazardous (Ex) and safe areas, this repeater power supply is a 2-channel unit that features HART transparency, supporting both Ex i 2-conductor measuring transducers and 4…20 mA signal transmission to the safe area. It also provides 5-way electrical isolation with screw connections and meets SIL 3 and PL standards for reliability.
Specifications
Conditioner Connection Type
Screw Connection
Component
Isolator
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
2
Features

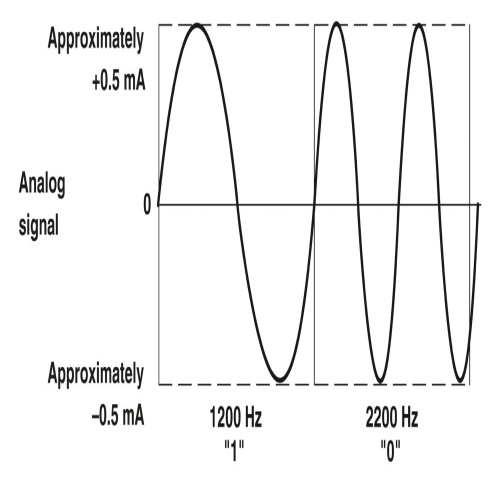

HART-compatible
4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered
Output 4 mA ... 20 mA, active
2-channel
Error indication according to NAMUR NE 43
Up to SIL 3 according to IEC/EN 61508
5-way electrical isolation
Power supply possible via DIN rail connector
Installation in Ex zone 2 permitted
Plug-in connection terminal blocks, screw connection technology, with integrated sockets for HART communicators
Housing width: 12.5 mm
Minimal power dissipation
High transmission accuracy
Downloads
Phoenix 2865382 Application Note English.pdfPhoenix 2865382 CAD data International.dxfPhoenix 2865382 CAD data International.pdfPhoenix 2865382 CAD data International.stpPhoenix 2865382 Certification English.pdfPhoenix 2865382 Certification International.pdfPhoenix 2865382 Data Sheet English.pdfPhoenix 2865382 Manual English.pdfPhoenix 2865382 Manufacturers declaration English.pdfPhoenix 2865382 Manufacturers declaration International-2.pdfPhoenix 2865382 Manufacturers declaration International.pdfPhoenix 2865382 Package Slip International.pdfPhoenix 2865382 Tender Text English.zip
