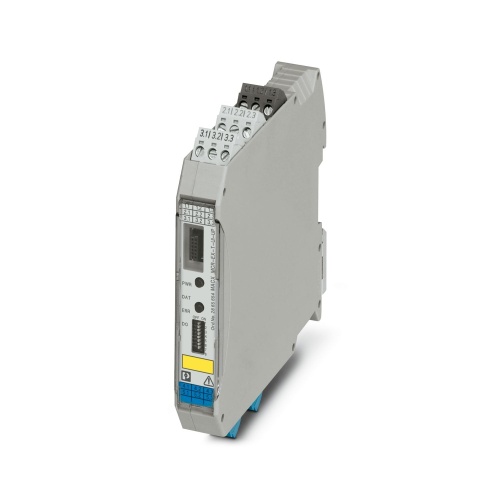

Phoenix Contact 2865654 Temperature measuring transducer MACX MCR-EX-T-UI-UP
Normally In Stock
Code: 72368
MACX MCR-EX-T-UI-UP MACX MCR-EX-T-UI-UP Phoenix Contact 2865654 Input/output/power supply Temperature measuring transducer
Condition: New
Usually ships Same Day or Next Day$783.62
Sale Price
$653.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2865654 This instrument features an ex-i temperature transducer that can be freely programmed, with an analog output and a single limit value relay. It comes in standard configuration as a resistance thermometer using 2-, 3-, or 4-conductor technology, offering compatibility with thermocouples. Additionally, it boasts electrical isolation, a wide-range power supply, screw connection options, and compliance with SIL and PL standards for increased safety and reliability.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Output Signal Range
4 Ma - 20 Ma
Component
Temperature Transducer
Conditioner Output Signal Range
22 Ma
Conditioner Output Signal Range
± 11 Volt
Features
Configuration via software (FDT/DTM) or IFS-OP-UNIT operator interface and display unit
Programming during operation with Ex measuring circuit connected and also voltage-free using IFS-USB-PROG-ADAPTER programming adapter
Cold junction compensation with separate plug

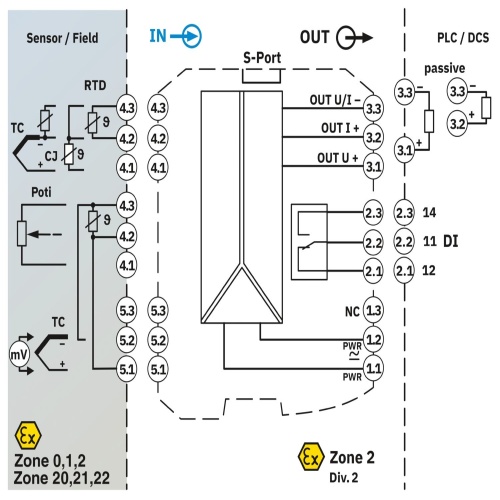

Input for resistance thermometers, thermocouples, resistance-type sensors, potentiometers, and mV sources, [Ex ia] IIC
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Up to SIL 2 in accordance with EN 61508
Status indicator for supply voltage, cable, sensor, and module errors
Plug-in screw or spring-cage connection technology (Push-in technology)
Wide-range power supply of 19.2 ... 253 V AC/DC
Measure differential temperatures
Inverse output signal ranges as an option
Relay switching output
Freely programmable input and output
Downloads
Phoenix 2865654 Application Note English.pdfPhoenix 2865654 CAD data International.dxfPhoenix 2865654 CAD data International.pdfPhoenix 2865654 CAD data International.stpPhoenix 2865654 Certification English-2.pdfPhoenix 2865654 Certification English.pdfPhoenix 2865654 Certification International.pdfPhoenix 2865654 Data Sheet English.pdfPhoenix 2865654 Drivers and Driver Modules International.zipPhoenix 2865654 E-Learning English.wmvPhoenix 2865654 Manual English.pdfPhoenix 2865654 Manufacturers declaration English.pdfPhoenix 2865654 Manufacturers declaration International-2.pdfPhoenix 2865654 Manufacturers declaration International.pdfPhoenix 2865654 Package Slip International-2.pdfPhoenix 2865654 Package Slip International.pdfPhoenix 2865654 Software International.exePhoenix 2865654 Software International.zipPhoenix 2865654 Tender Text English.zip
