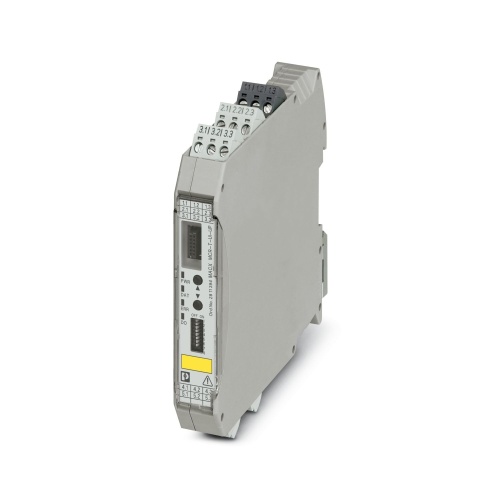

Phoenix Contact 2811394 Temperature measuring transducer MACX MCR-T-UI-UP
Normally In Stock
Code: 72362
MACX MCR-T-UI-UP MACX MCR-T-UI-UP Phoenix Contact 2811394 Input/output/power supply Temperature measuring transducer
Condition: New
Usually ships Same Day or Next Day$660.20
Sale Price
$550.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2811394 A freely programmable temperature transducer comes standard with an analog output and a single limit value relay, featuring multiple configurations available including resistance thermometer technology in either 2-, 3-, or 4-conductor formats alongside thermocouple compatibility, electrical isolation capabilities, a wide-range power supply, screw connection options, and compliance with SIL and PL standards.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Output Signal Range
4 Ma - 20 Ma
Component
Temperature Transducer
Conditioner Output Signal Range
22 Ma
Conditioner Output Signal Range
± 11 Volt
Features
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Configuration via software (FDT/DTM) or IFS-OP-UNIT operator interface and display unit
Up to SIL 2 in accordance with EN 61508
Cold junction compensation with separate plug
Programming during operation and also voltage-free using IFS-USB-PROG-ADAPTER programming adapter
Plug-in screw or spring-cage connection technology (Push-in technology)
Freely programmable input and output

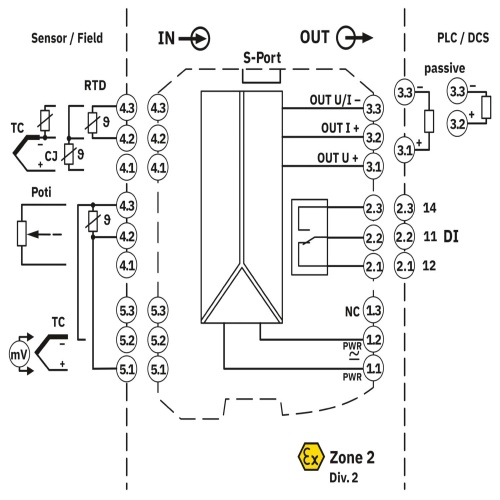

Input for resistance thermometers, thermocouples, resistance-type sensors, potentiometers, and mV sources
Measure differential temperatures
Relay switching output
Inverse output signal ranges as an option
Downloads
Phoenix 2811394 Application Note English.pdfPhoenix 2811394 CAD data International.dxfPhoenix 2811394 CAD data International.pdfPhoenix 2811394 CAD data International.stpPhoenix 2811394 Certification English-2.pdfPhoenix 2811394 Certification English.pdfPhoenix 2811394 Certification International.pdfPhoenix 2811394 Drivers and Driver Modules International.zipPhoenix 2811394 E-Learning English.wmvPhoenix 2811394 Manual English.pdfPhoenix 2811394 Manufacturers declaration English.pdfPhoenix 2811394 Manufacturers declaration International-2.pdfPhoenix 2811394 Manufacturers declaration International.pdfPhoenix 2811394 Package Slip International-2.pdfPhoenix 2811394 Package Slip International.pdfPhoenix 2811394 Software International.exePhoenix 2811394 Software International.zipPhoenix 2811394 Tender Text English.zip

Code: 72362
Phoenix Contact 2811394 Temperature measuring transducer MACX MCR-T-UI-UP
$660.20
Sale Price
$550.17
