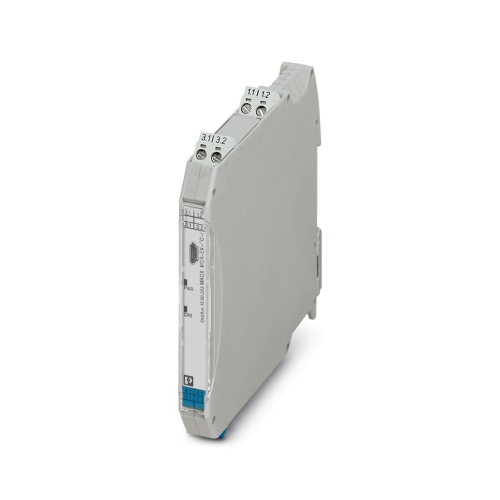

Phoenix Contact 1050233 Temperature measuring transducer MACX MCR-EX-TC-I
Normally In Stock
Code: 72351
MACX MCR-EX-TC-I MACX MCR-EX-TC-I Phoenix Contact 1050233 Input/output/power supply Temperature measuring transducer *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$399.17
Sale Price
$332.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

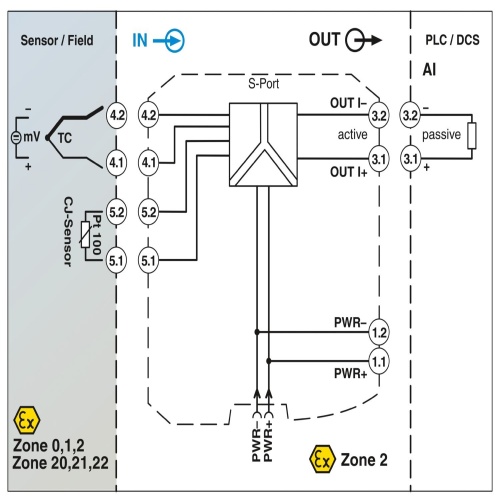

Phoenix Contact 1050233 An ex-temperature transducer is an device that takes the temperature signals from thermocouples installed in Ex zones and from mV sources, processes them into a 0/4…20 mA signal, which can then be transmitted to a load located in a safe area. This device is also fully programmable, allowing for customizable settings. Additionally, it features three-way isolation, a screw connection type, and SIL (Safety Integrity Level) certification.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Number of Channels
1
Component
Temperature Transducer
Features
Installation in zone 2, protection type "ec" (EN 60079-7) permitted
Power supply possible via DIN rail connector
Programming during operation with Ex measuring circuit connected and also voltage-free using IFS-USB-PROG-ADAPTER programming adapter
Input for thermocouples and mV sources
3-way electrical isolation
Status indicator for supply voltage, cable, sensor, and module errors
Configuration via software (FDT/DTM): sensor type, connection technology, measuring range, measuring unit, filter, alarm signal, and output range
Output: 0 mA ... 20 mA or 4 mA ... 20 mA
