Phoenix Contact 5448035 PCB connector BCP-381-19 GN
Normally In Stock
Code: 723370
Phoenix Contact BCP-381-19 GN - PCB connector, 19 Positions, 3.81 mm, 160 VAC, 8 Amp, Cu alloy - 5448035
Condition: New
Usually ships Same Day or Next Day$15.01
Sale Price
$12.51
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

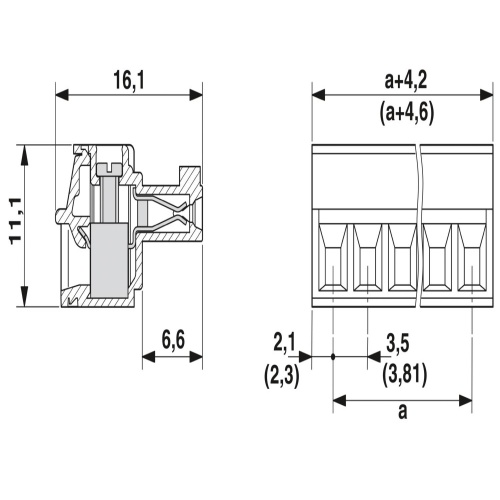

Phoenix Contact 5448035 A PCB connector features a pastel green cross-section of 1.5 mm2 and is rated for 8 A of current with a maximum voltage of 160 V. The connection is made through a socket with a Sn contact surface, accommodating 19 potentials across a single row of 19 positions, utilizing screw connections with tension sleeves, and has specific dimensions including a pitch of 3.81 mm.
Specifications
Connector Amperage
8 Amp
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Component
PCB
Number of Positions
19
Number of Connections
19
Sub Component
PCB Connector
Connector Pitch
3.81 mm
Connector Color
Signal Gray
Features
Well-known connection principle allows worldwide use
Allows connection of two conductors
