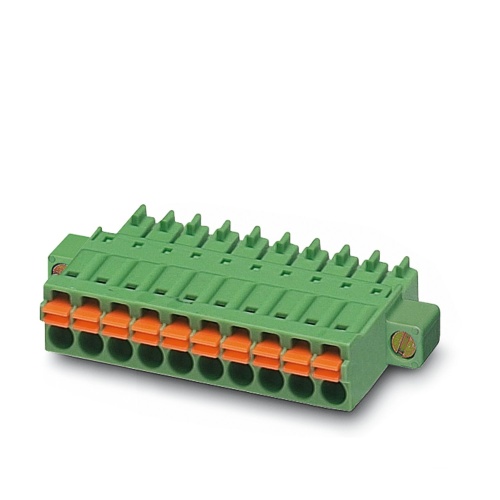

Phoenix Contact 1966266 PCB connector FMC 1,5/19-STF-3,5
Normally In Stock
Code: 723363
Phoenix Contact FMC 1,5/19-STF-3,5 - PCB connector, 19 Positions, 3.5 mm, 160 VAC, 8 Amp, Cu alloy - 1966266
Condition: New
Usually ships Same Day or Next Day$18.60
Sale Price
$15.50
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1966266 The connector features a nominal cross-section of 1.5 mm², is colored green, and has a maximum current capacity of 8 A, with a rated voltage of 160 V. It boasts a socket design and 19 pins, arranged in one row with an overall pitch of 3.5 mm. The connection method employs push-in spring connections, while the conductor/PCB connection direction is at 0 degrees. This connector falls within the FMC product range, specifically the 1.5/...-STF variant.
Specifications
Connector Amperage
8 Amp
Connector Color
Black
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Component
PCB
Number of Positions
19
Number of Connections
19
Sub Component
PCB Connector
Connector Pitch
3.5 mm
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
Screwable flange for superior mechanical stability
