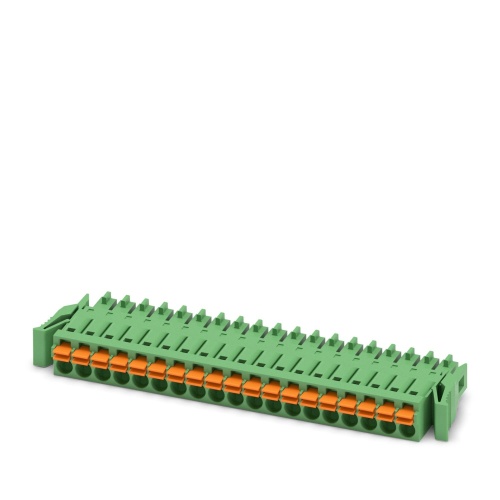

Phoenix Contact 1952199 PCB connector FMC 1,5/19-ST-3,5-RF
Normally In Stock
Code: 723361
Phoenix Contact FMC 1,5/19-ST-3,5-RF - PCB connector, 19 Positions, 3.5 mm, 160 VAC, 8 Amp, Cu alloy - 1952199
Condition: New
Usually ships Same Day or Next Day$31.00
Sale Price
$25.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1952199 A PCB connector with a nominal cross-sectional area of 1.5 mm² and green color has a maximum current rating of 8 A and is designed to operate at rated voltages up to 160 V. The connector features a Sn contact surface and uses a push-in spring connection, with the conductor and PCB connected in a 0° direction. It consists of 19 potentials arranged in one row of 19 positions, using a snap-in locking mechanism that can be mounted via an latching flange and is packaged in cardboard.
Specifications
Connector Color
Green
Connector Amperage
8 Amp
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Component
PCB
Number of Positions
19
Number of Connections
19
Sub Component
PCB Connector
Connector Pitch
3.5 mm
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
Intuitive locking mechanism prevents accidental disconnection
