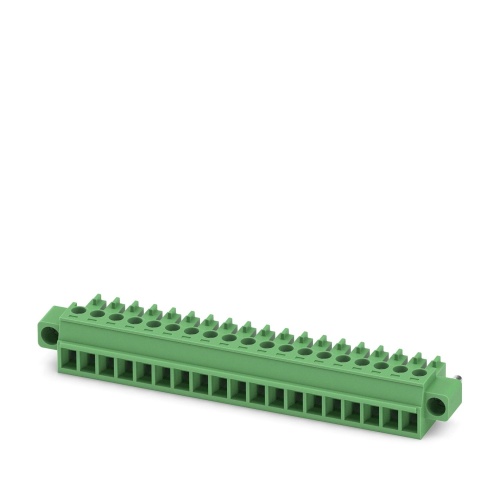

Phoenix Contact 1848465 The specified PCB connector features a nominal cross-section of 1.5mm², has a green color, and can handle up to 8A of current while operating within a rated voltage range of 160V. It boasts 19 contact surfaces, with a socket connection type, arranged in one row and position, totaling 19 connections. The connector utilizes screw connections with tension sleeves and features an L-slotted screw head, while the conductor/PCB connection direction is at 0° degrees. This connector falls under the COMBICON MC 1,5 product range, with a pitch of 3.81mm, and can be mounted using a screw flange with a screw locking mechanism packaged in cardboard.
