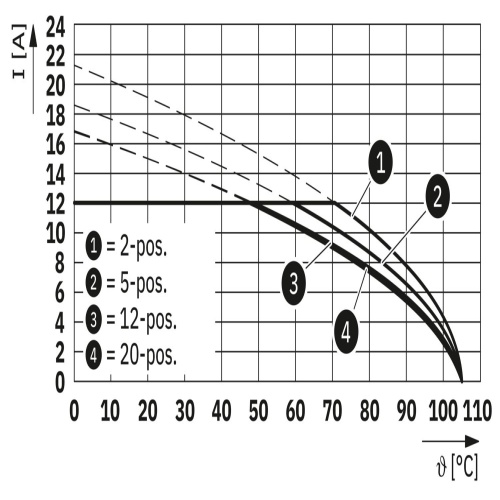

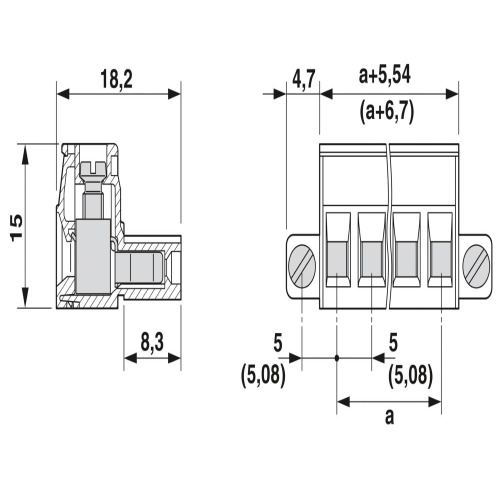

Phoenix Contact 5448611 The given PCB connector has a nominal cross-sectional area of 2.5 mm² and is colored pastel green. It can handle a maximum current of 12 A at a rated voltage of 320 V (III/2). The contact surface is made of tin, and it uses a socket connection with 19 individual potentials. The connector has 19 positions with screw connections using tension sleeves and features an L-slotted screw head. When not locked in place, the connector can be easily inserted into a BASICLINE 2,5 system, secured by a screw locking mechanism and mounted using a screw flange, all of which are packaged in cardboard.
