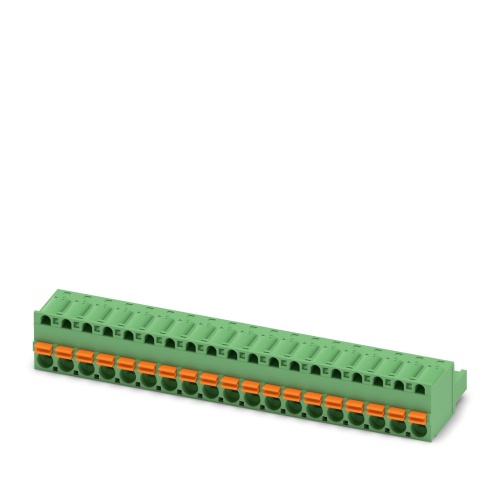

Phoenix Contact 1945038 PCB connector FKC 2,5/19-ST-5,08
Normally In Stock
Code: 723350
Phoenix Contact FKC 2,5/19-ST-5,08 - PCB connector, 19 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1945038
Condition: New
Usually ships Same Day or Next Day$26.95
Sale Price
$22.46
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1945038 The PCB connector has a nominal cross-sectional area of 2.5mm² and is green in color with a rated voltage of 320V and a maximum current of 12A. It features a socket connection type and comes in 19 different potentials, arranged in one row of 19 positions, making it suitable for the FKC 2,5/..-ST product range. The connector has a push-in spring connection mechanism and is designed to accommodate conductors on either side of the PCB, with no locking clip required, and is packaged in cardboard without any additional mounting components.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Component
PCB
Number of Positions
19
Number of Connections
19
Sub Component
PCB Connector
Connector Pitch
5.08 mm
Features
Time saving push-in connection, tools not required
Intuitive operation due to color-coded actuating push button
Quick and convenient testing using integrated test option
Can be combined with the MSTB 2,5 range
