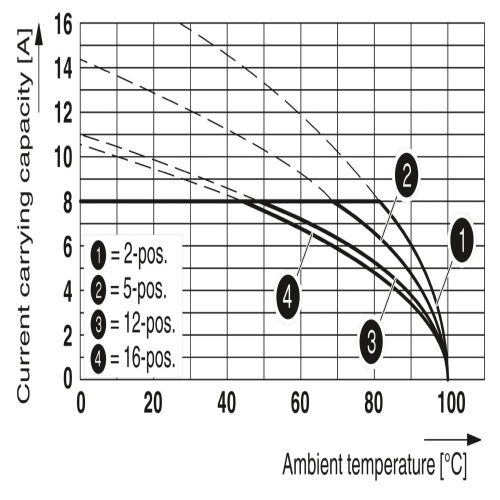

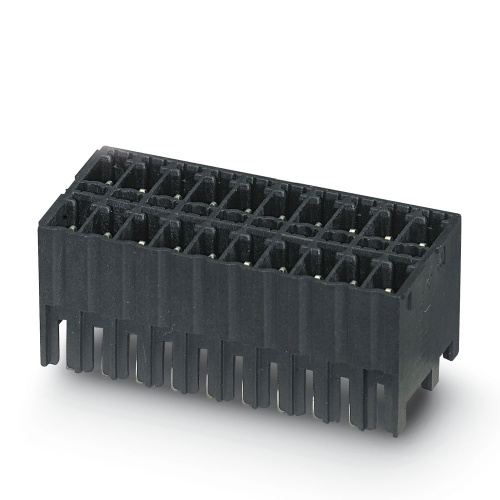

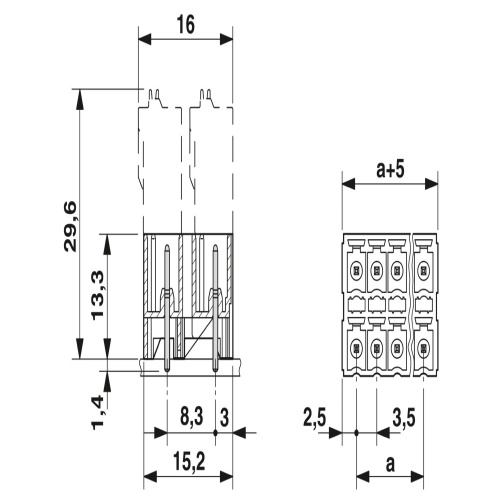

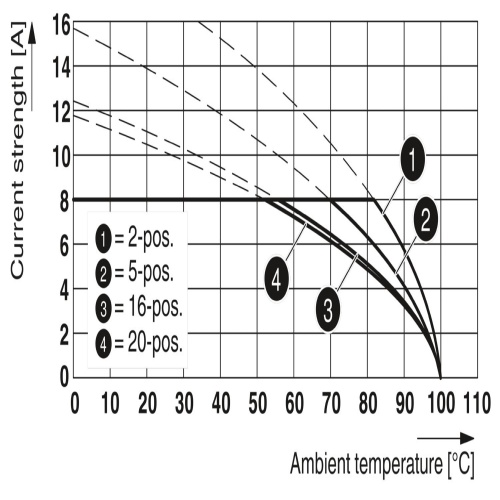

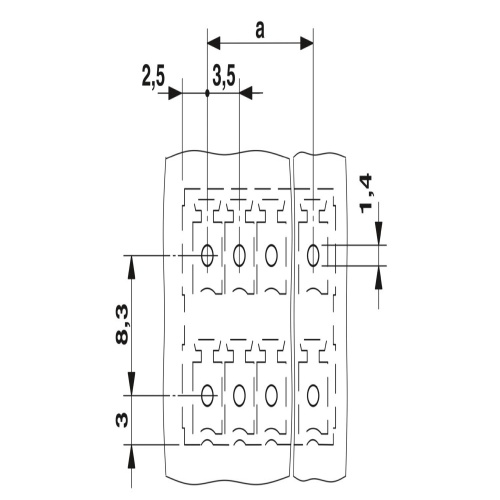

Phoenix Contact 1953172 The PCB headers have a nominal cross-sectional area of 1.5mm², are color-coded black, and have a maximum current rating of 8A with a rated voltage of 160V for three-phase applications. They feature a Sn contact surface, linear pinning layout, and come in various configurations including the MCDNV 1.5/..-G1-THR pitch, which is 3.5mm apart, suitable for THR soldering or wave soldering. The headers include 36 connections with 18 positions, 36 connections, and are packaged in cardboard without any additional components or lockable features.
