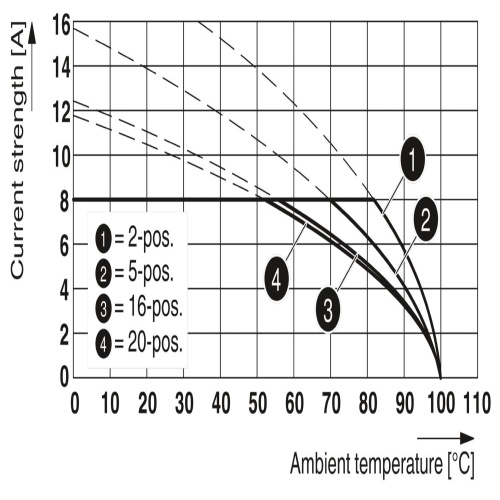

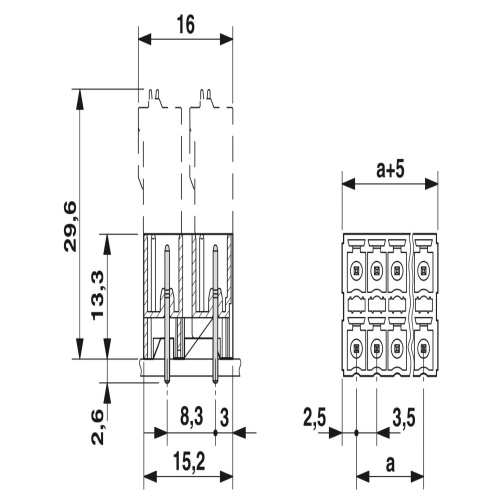

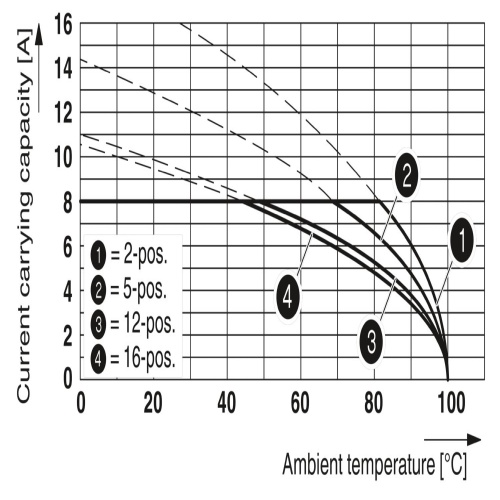

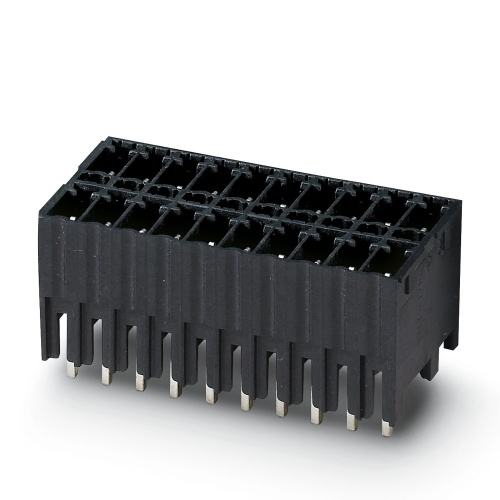

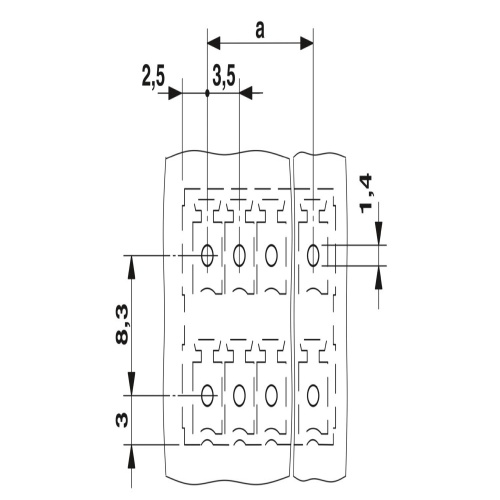

Phoenix Contact 1952940 The PCB headers have specific dimensions and characteristics, including a nominal cross-sectional area of 1.5mm², a black color, and a maximum rated current of 8A at a voltage of 160V. The contact surface is made of tin, with pin contacts of a standard layout featuring linear pinning, where each potential has two solder pins measuring 2.6mm in length. These headers are mounted using a THR soldering/wave soldering method and can be used for the MCDNV 1.5/...-G1-THR product range, with a pitch of 3.5mm and 36 connections in total. The headers come pre-packaged in cardboard packaging and have a pin length of 26mm, with information on user settings and design recommendations available at http: "Downloads".
