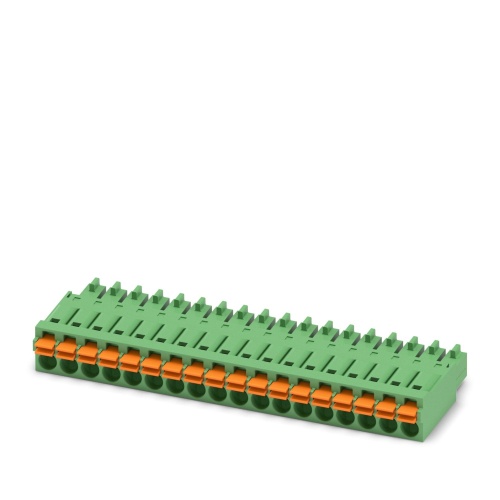

Phoenix Contact 1952429 PCB connector FMC 1,5/18-ST-3,5
Normally In Stock
Code: 723329
Phoenix Contact FMC 1,5/18-ST-3,5 - PCB connector, 18 Positions, 3.5 mm, 160 VAC, 8 Amp, Cu alloy - 1952429
Condition: New
Usually ships Same Day or Next Day$21.55
Sale Price
$17.96
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1952429 The PCB connector has a nominal cross-sectional area of 1.5mm2, is green in color and can handle a maximum current of 8A at a rated voltage of 160V. The contact surface is made of tin (Sn) and uses a socket connection type with 18 potential pins arranged in a single row of 18 positions, connected by push-in spring connections, allowing for easy plugging and unplugging without locking or mounting requirements, packaged in cardboard.
Specifications
Connector Color
Green
Connector Amperage
8 Amp
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Component
PCB
Number of Connections
18
Number of Positions
18
Sub Component
PCB Connector
Connector Pitch
3.5 mm
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
