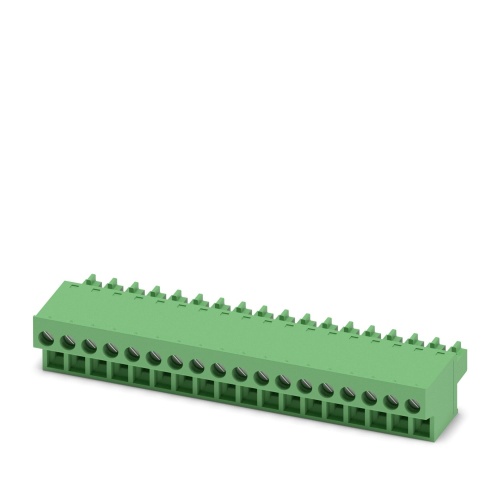

Phoenix Contact 1850822 PCB connector FRONT-MC 1,5/18-ST-3,81
Normally In Stock
Code: 723328
Phoenix Contact FRONT-MC 1,5/18-ST-3,81 - PCB connector, 18 Positions, 3.81 mm, 160 VAC, 8 Amp, Cu alloy - 1850822
Condition: New
Usually ships Same Day or Next Day$48.90
Sale Price
$40.75
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1850822 A PCB connector features a cross-sectional area of 1.5 mm² and has a green color, with a nominal current rating of 8 A and a maximum allowed voltage of 160 V. The connection surface is made of tin (Sn) and utilizes a socket contact type with 18 pins, arranged in a single row and position configuration. This connector can be easily connected using front screw connections, with an L-slotted screw head, and has a pitch of 3.81 mm. It does not require locking or mounting and is typically packaged in cardboard.
Specifications
Connector Color
Green
Connector Amperage
8 Amp
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Component
PCB
Number of Connections
18
Number of Positions
18
Sub Component
PCB Connector
Connector Pitch
3.81 mm
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Optimized for tight installation situations: operation and conductor connection from one direction
