Code: 722659

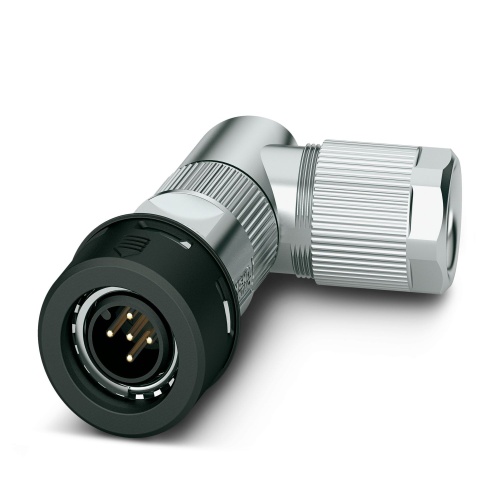

Phoenix Contact 1177590 Connector SACC-PO12MR-5CT-CL SH
Normally In Stock
Phoenix Contact SACC-PO12MR-5CT-CL SH - Connector, 5 Positions, 48 VAC, 4 Amp - 1177590
Condition: New
Usually ships Same Day or Next Day$41.64
Sale Price
$34.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1177590 A universal connector with a 5-position design, featuring shielding and an angled M12 push-pull external locking mechanism with coding option A, is secured through a crimp connection using a knurl made from PA 6.6 material, while the cable diameter ranges between 6.5 mm to 10 mm without utilizing crimp contacts.
Specifications
Connector Amperage
4 Amp
Component
Circular Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Features

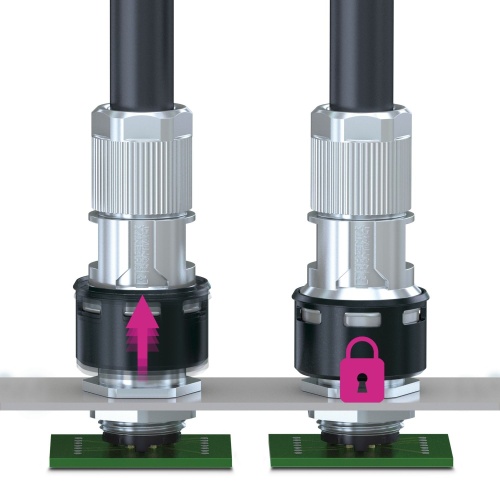

Plug and Produce: convenient and secure connection, thanks to the manufacturer-independent locking system
Extremely compact, thanks to the small wiring space and high contact density
Clear feedback: the connector springs back when not snapped into place correctly
Safely shielded: reliable shield connection even under extreme mechanical strain

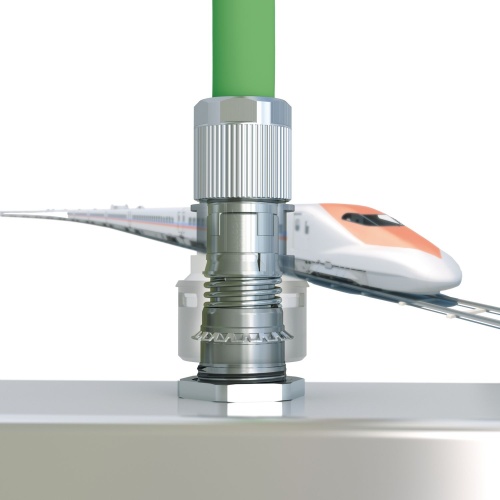

Robust connection: suitable for railway applications with high shock and vibration loads
