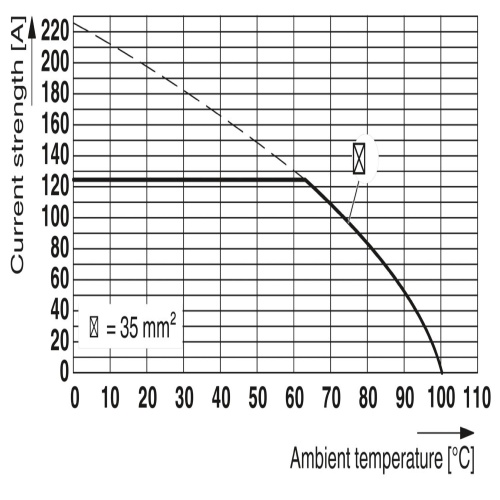

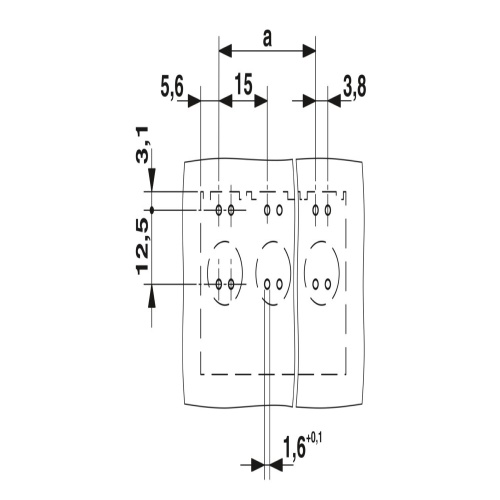

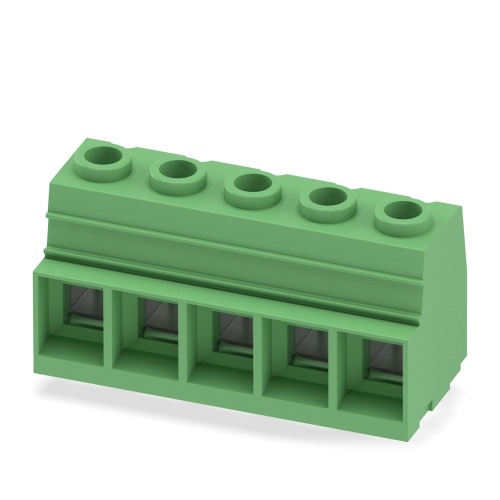

Phoenix Contact 1932614 The printed circuit board terminal features a nominal current rating of 125 A and a rated voltage of 1000 V, with a cross-sectional area of 35 mm². It has five potentials, one row, and five positions per row, part of the MKDSP 25 product range, with a pitch of 15 mm. The connection method is screw-based with a tension sleeve, using Z2L Slotted Pozidriv screws for mounting via wave soldering. Solder pins are used at a 0-degree angle, with green color and linear pinning arrangement, while the individual solder pins measure 4.5 mm in length and four are connected to each potential. The terminal is packaged in cardboard and should not be subject to permanent mechanical loads due to its design.
