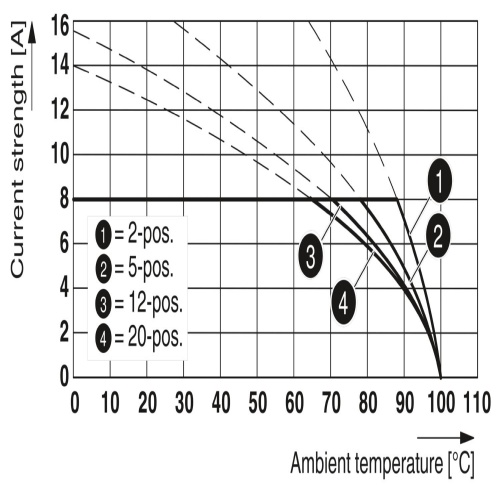

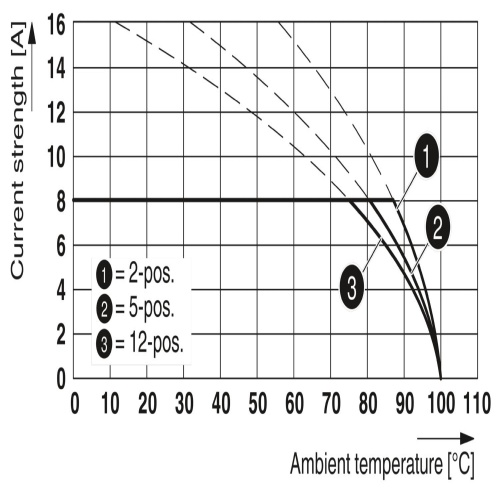

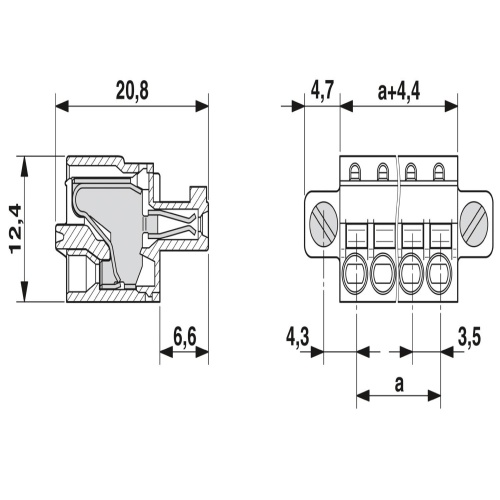

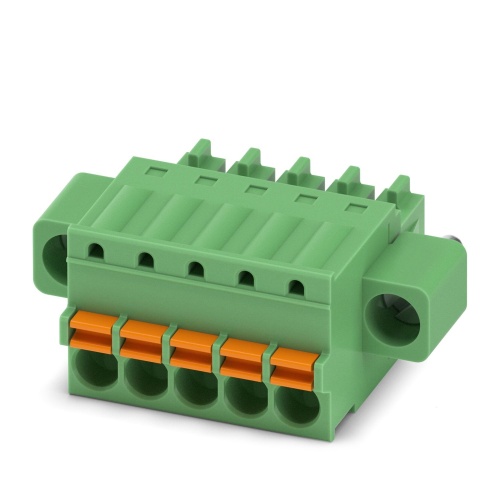

Phoenix Contact 1940127 The PCB connector features a nominal cross-sectional area of 1.5 mm² and is identified by its green color. It has a maximum current rating of 8 A and a rated voltage of up to 160 V. The contact surface material is tin (Sn) and utilizes a socket connection type with five potential contacts, arranged in a single row across a total of five positions, also known as the FK-MCP 1,5/..-STF product range. The connector's pitch is 3.5 mm and uses a push-in spring connection mechanism to link conductors to the PCB. It also employs a COMBICON MC 1,5 plug-in system with screw locking mechanism for secure mounting via a screw flange, packaged in cardboard.
