Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

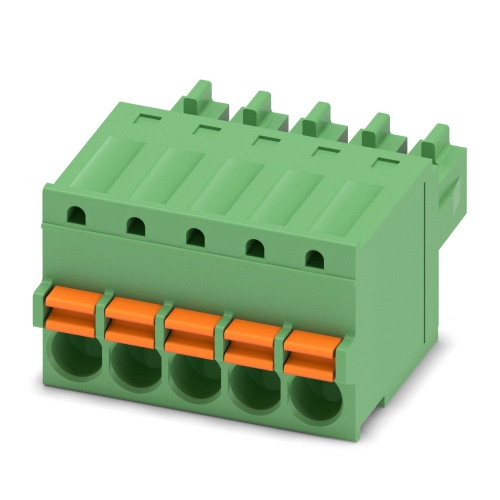

Phoenix Contact 1939947 PCB connector FK-MCP 1,5/ 5-ST-3,5
Normally In Stock
Code: 722626
Phoenix Contact FK-MCP 1,5/ 5-ST-3,5 - PCB connector, 5 Positions, 3.5 mm, 160 VAC, 8 Amp, Cu alloy - 1939947
Condition: New
Usually ships Same Day or Next Day$11.50
Sale Price
$9.58
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1939947 A PCB connector with a nominal cross section of 1.5 mm² and green color features a maximum current rating of 8 A under 160 V conditions, utilizing a Sn contact surface for connection through a socket design with five potentials, arranged on a single row and five positions with push-in spring connections in both conductor-to-PCB and PCB-to-conductor directions, packaged in cardboard without mounting or locking mechanisms.
Specifications
Connector Color
Green
Connector Amperage
8 Amp
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Number of Connections
5
Number of Positions
5
Component
PCB
Sub Component
PCB Connector
Connector Pitch
3.5 mm
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
Code: 722626
Phoenix Contact 1939947 PCB connector FK-MCP 1,5/ 5-ST-3,5
$11.50
Sale Price
$9.58
MUST BUY IN PACKS OF 50
