Phoenix Contact 1908538 PCB connector MVSTBW 2,5/ 5-STF-5,08 ABGY AU
Normally In Stock
Code: 722621
Phoenix Contact MVSTBW 2,5/ 5-STF-5,08 ABGY AU - PCB connector, 5 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1908538
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$12.24
Sale Price
$10.20
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

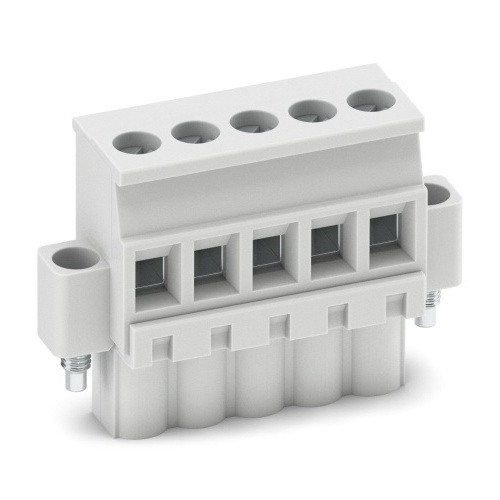

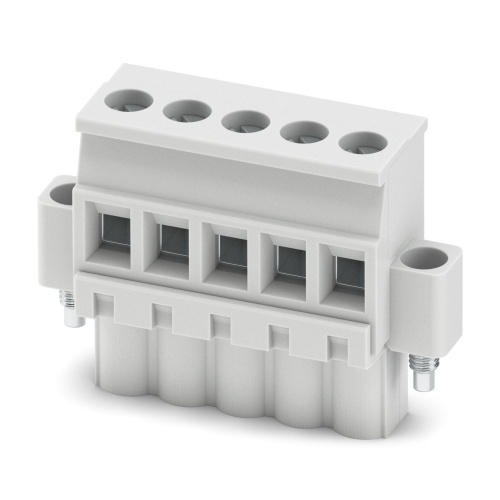

Phoenix Contact 1908538 The PCB connector features a nominal cross-sectional area of 2.5 mm² with an agate gray color and is rated for a maximum current of 12 A at a voltage of up to 320 V (III/2). The contact surface is made of gold, and the connection type is socket, connecting five potentials across one row with five positions, five connections, and packaged in a cardboard box.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Number of Connections
5
Number of Positions
5
Component
PCB
Sub Component
PCB Connector
Connector Pitch
5.08 mm
Features
Gold-plated contacts ensure transfer quality remains stable over the long term
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Screwable flange for superior mechanical stability
