Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

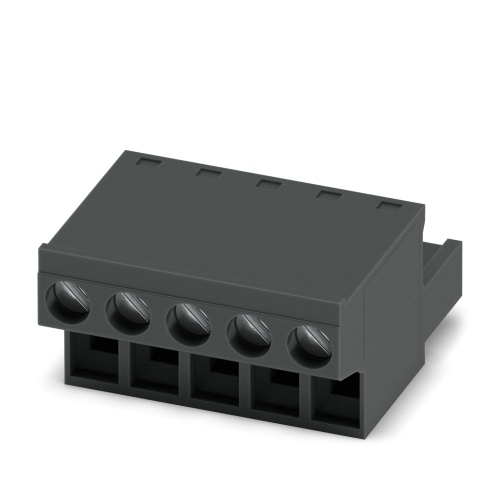

Phoenix Contact 1920891 PCB connector FRONT-MSTB 2,5/ 5-ST-5,08 BK
Normally In Stock
Code: 722610
Phoenix Contact FRONT-MSTB 2,5/ 5-ST-5,08 BK - PCB connector, 5 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1920891
Condition: New
Usually ships Same Day or Next Day$16.21
Sale Price
$13.51
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1920891 The specified connector has a cross-section of 2.5 mm², is black in color, and can handle up to 12 A of current while withstanding a rated voltage of 320 V, with five contact points that require screw connections, featuring an L-slotted screw head, and are directed at 0° angle, using a locking clip system without any locking mechanism, and is packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Number of Connections
5
Number of Positions
5
Component
PCB
Sub Component
PCB Connector
Connector Pitch
5.08 mm
Features
Well-known connection principle allows worldwide use
Optimized for tight installation situations: operation and conductor connection from one direction
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Code: 722610
Phoenix Contact 1920891 PCB connector FRONT-MSTB 2,5/ 5-ST-5,08 BK
$16.21
Sale Price
$13.51
MUST BUY IN PACKS OF 50
