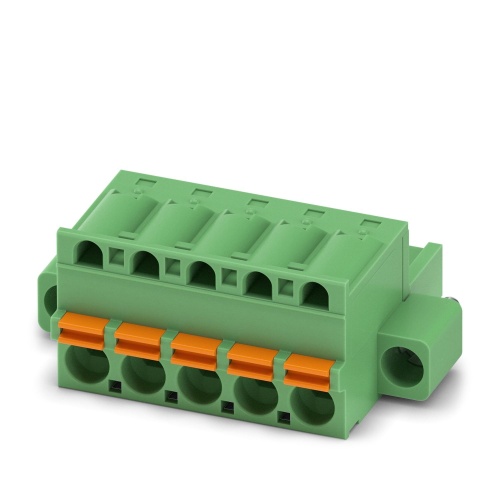

Phoenix Contact 1945672 PCB connector FKC 2,5/ 5-STF-5,08 AU
Normally In Stock
Code: 722607
Phoenix Contact FKC 2,5/ 5-STF-5,08 AU - PCB connector, 5 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1945672
Condition: New
Usually ships Same Day or Next Day$15.28
Sale Price
$12.73
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1945672 The PCB connector is a green, 2.5mm² cross-sectional component rated for 12A of nominal current and 320V voltage (III/2). It features a socket connection type with five potentials and a single row configuration with five positions and connections. The pitch of the connector is 5.08mm, utilizing a push-in spring connection method with conductor/PCB connections directed at 0°. A locking clip secures the connector, and it uses a plug-in system via COMBICON MSTB 2.5. The component is mounted using a screw flange, packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Number of Connections
5
Number of Positions
5
Component
PCB
Sub Component
PCB Connector
Connector Pitch
5.08 mm
Features
Gold-plated contacts ensure transfer quality remains stable over the long term
Time saving push-in connection, tools not required
Intuitive operation due to color-coded actuating push button
Quick and convenient testing using integrated test option
Screwable flange for superior mechanical stability
Can be combined with the MSTB 2,5 range
