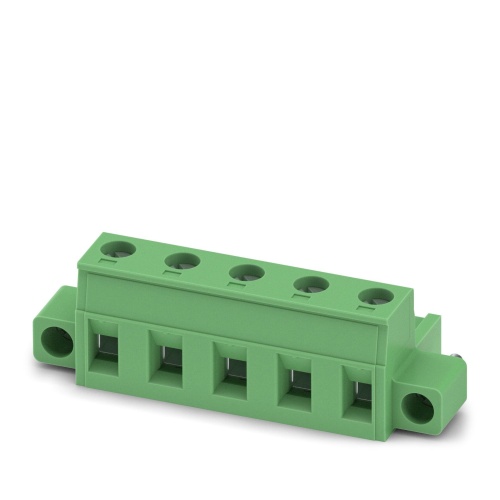

Phoenix Contact 1858798 PCB connector GMSTB 2,5/ 5-STF-7,62
Normally In Stock
Code: 722605
Phoenix Contact GMSTB 2,5/ 5-STF-7,62 - PCB connector, 5 Positions, 7.62 mm, 630 VAC, 12 Amp, Cu alloy - 1858798
Condition: New
Usually ships Same Day or Next Day$11.93
Sale Price
$9.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1858798 A PCB connector with a nominal cross-section of 2.5mm² has five pins and is colored green, featuring a socket connection type with a rated voltage of up to 630V at 12A, the contact surface is made of tin, and screw connections are secured using a tension sleeve, which can be locked into place via a screw locking mechanism mounted on a flange that is then screwed onto the PCB.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Number of Connections
5
Number of Positions
5
Component
PCB
Sub Component
PCB Connector
Connector Pitch
7.62 mm
Features
Plugs for 630 V applications (III/2)
