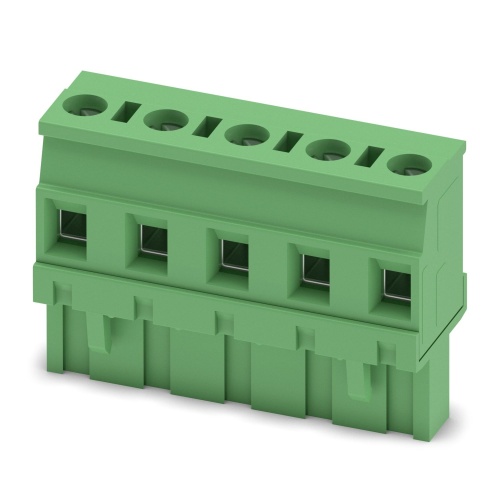

Phoenix Contact 1832552 PCB connector GMVSTBR 2,5/ 5-ST-7,62
Normally In Stock
Code: 722602
Phoenix Contact GMVSTBR 2,5/ 5-ST-7,62 - PCB connector, 5 Positions, 7.62 mm, 630 VAC, 12 Amp, Cu alloy - 1832552
Condition: New
Usually ships Same Day or Next Day$12.16
Sale Price
$10.13
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1832552 A PCB connector with a nominal cross-sectional area of 2.5mm² and a green color is rated for a maximum current of 12A at a voltage of 630V. The contact surface is made of tin, and the connection method features a screw design with a tension sleeve. The socket has five potentials, one row, five positions, and makes five connections. It falls under the product range GMVSTBR 2,5/..-ST, with a pitch of 7.62mm and a locking clip option that does not require locking. This connector is packaged in cardboard without any additional mounting or packaging features.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Number of Connections
5
Number of Positions
5
Component
PCB
Sub Component
PCB Connector
Connector Pitch
7.62 mm
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Larger pitch for increased voltage requirements
Allows connection of two conductors
