Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

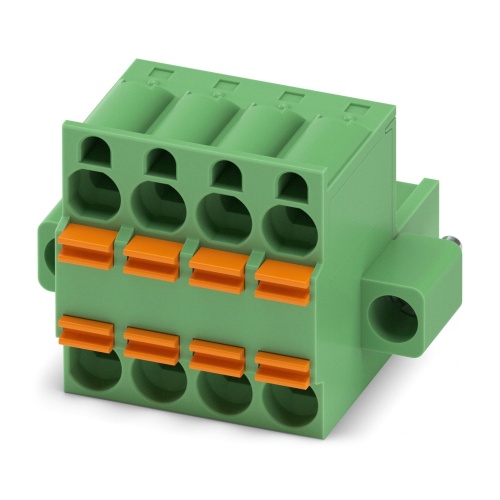

Phoenix Contact 1962710 PCB connector TFKC 2,5/ 4-STF-5,08
Normally In Stock
Code: 722554
Phoenix Contact TFKC 2,5/ 4-STF-5,08 - PCB connector, 4 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1962710
Condition: New
Usually ships Same Day or Next Day$12.46
Sale Price
$10.38
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1962710 The PCB TWIN plug features a nominal cross-section of 2.5mm² with a green color, and is rated for a maximum current of 12A at a voltage of 320V. It has a Sn contact surface and uses a socket connection type with four potentials, arranged in one row with eight connections. The product range includes the TFKC 2,5/...-STF, which has a pitch of 5.08mm and utilizes a push-in spring connection method.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Number of Connections
8
Number of Positions
4
Component
PCB
Sub Component
PCB Plug
Connector Pitch
5.08 mm
Features
Time saving push-in connection, tools not required
Potentials can be easily looped through – ideal for BUS applications
Intuitive operation due to color-coded actuating push button
Can be combined with the MSTB 2,5 range
Screwable flange for superior mechanical stability
Code: 722554
Phoenix Contact 1962710 PCB connector TFKC 2,5/ 4-STF-5,08
$12.46
Sale Price
$10.38
MUST BUY IN PACKS OF 50
