Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

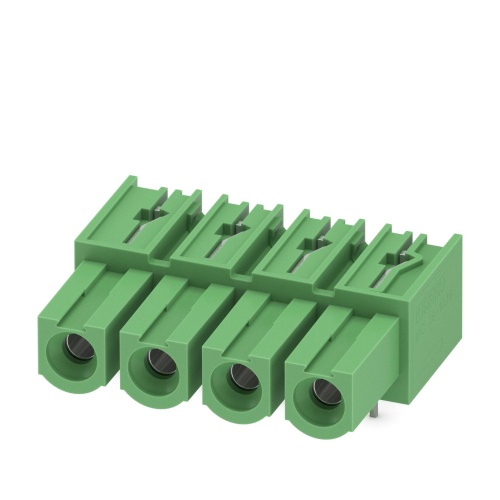

Phoenix Contact 1969551 PCB header IPC 16/ 4-G-10,16
Normally In Stock
Code: 722551
Phoenix Contact IPC 16/ 4-G-10,16 - PCB header, 4 Positions, 10.16 mm, 1000 VAC, 76 Amp, Cu alloy - 1969551
Condition: New
Usually ships Same Day or Next Day$20.86
Sale Price
$17.38
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1969551 The PCB headers are designed with a nominal cross-sectional area of 16 mm2, featuring a green color and a rated current of 76 A, with an upper limit of 1000 V. The contact surface is made of silver (Ag) and the connection type is socket, accommodating four potentials in a linear pinning layout with a pitch of 10.16 mm, suitable for wave soldering mounting.
Specifications
Connector Color
Green
Connector Amperage
76 Amp
Connector Material
Cu Alloy
Manufacturer
Phoenix Contact
Number of Connections
4
Number of Positions
4
Component
PCB
Sub Component
PCB Header
Connector Pitch
10.16 mm
Features
Well-known mounting principle allows worldwide use
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Inverted header with socket contacts for touch-proof device outputs or PCB/PCB connections
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
