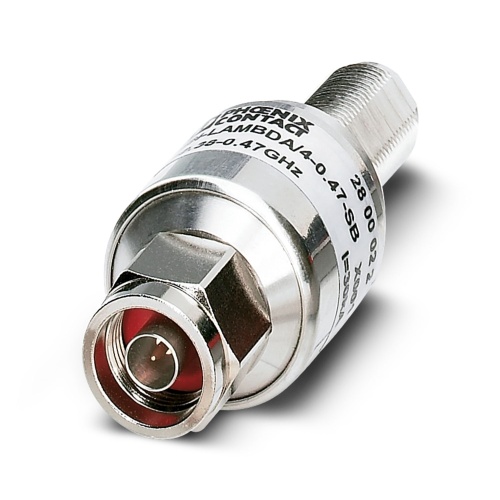

Phoenix Contact 2800022 Surge protection device CN-LAMBDA/4-0.47-SB
Normally In Stock
Code: 72209
CN-LAMBDA/4-0.47-SB Phoenix 2800022 Surge protection for transceiver systems N Connector,N connector, male,N connector, female Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$251.90
Sale Price
$209.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

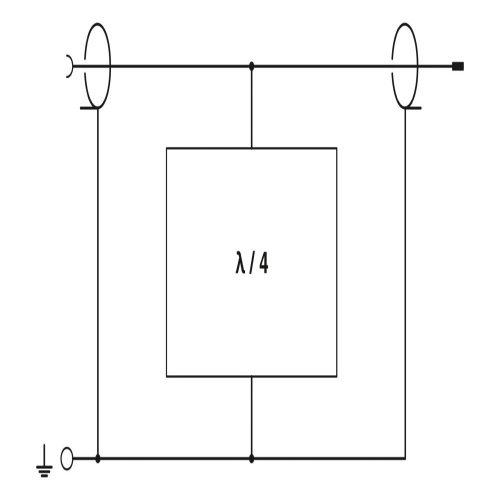

Phoenix Contact 2800022 A specialized attachment plug features advanced Lambda/4 technology as a means of surge protection specifically designed for coaxial signal interfaces, ensuring reliable and stable connections through its secure connection to an N connector socket.
Specifications
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Width
32 mm
Direction of Action
Line-Shield-Earth Ground
Manufacturer
Phoenix Contact
Mounting (RF Protection)
Connection-Specific Intermediate Plugging
Frequency (RF Protection)
380 Mhz - 470 Mhz
Nominal Discharge Current
20 Kamp
Nominal Current
5 Amp
Component
Surge Protection Device
Features
Exceptional protective properties with Lambda/4 technology
Use under extreme ambient conditions with robust design
Service-friendly with maintenance-free protective circuit
Easy installation with system-compliant connection
Downloads
Phoenix 2800022 CAD data International.stpPhoenix 2800022 Data Sheet English.pdfPhoenix 2800022 Flyer English.pdfPhoenix 2800022 Manufacturers declaration International.pdfPhoenix 2800022 Package Slip English.pdfPhoenix 2800022 Software International.zipPhoenix 2800022 Surge Protection English.pdfPhoenix 2800022 Tender Text English.zip
