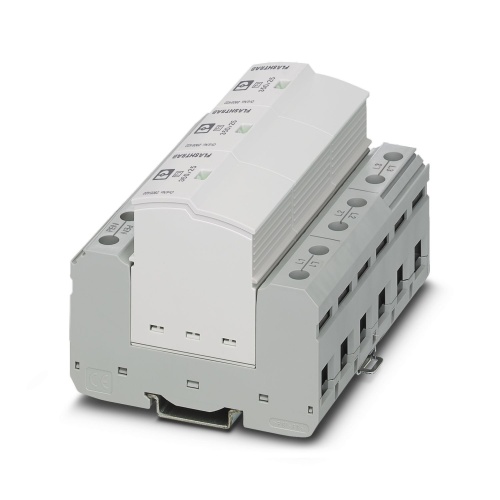

Phoenix Contact 2905419 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-3C-350/25-FM
Normally In Stock
Code: 72164
FLT-SEC-P-T1-3C-350/25-FM Phoenix 2905419 Combination type 240/415 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Combination type 1/2 protective device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$1296.70
Sale Price
$1080.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

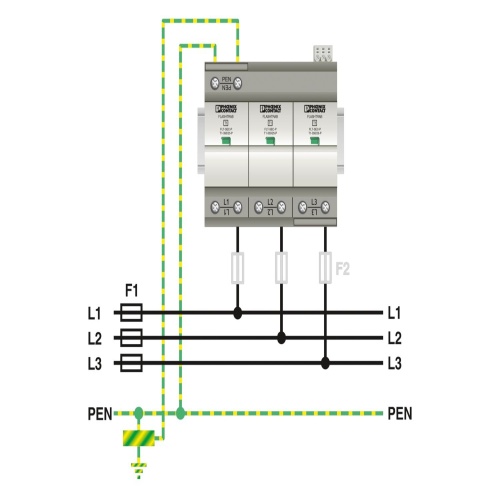

Phoenix Contact 2905419 A plug-in lightning arrester suitable for use on 3-phase power supply networks meets the requirements of Type 1/Class I and is designed to be free from leakage current. Additionally, it features a combined installation of PE and N conductors in one conductor, including L1, L2, L3, and PEN.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
I + II
Arrester Class according to IEC
T1 + T2
Max Discharge Capacity
25 Ka
Impulse Discharge Current
12.5 Ka
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Combination Type
Maximum Continous Voltage
255 Volt
Nominal Discharge Current
20 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Low voltage protection level for direct protection of end devices in the main distribution area
Downloads
Phoenix 2905419 CAD data International.dxfPhoenix 2905419 CAD data International.pdfPhoenix 2905419 CAD data International.stpPhoenix 2905419 Flyer English-2.pdfPhoenix 2905419 Flyer English.pdfPhoenix 2905419 Manufacturer's declaration International.pdfPhoenix 2905419 Manufacturers declaration English.pdfPhoenix 2905419 Manufacturers declaration International.pdfPhoenix 2905419 Package Slip International.pdfPhoenix 2905419 Surge Protection English.pdfPhoenix 2905419 Tender Text English.zip
