Code: 72083

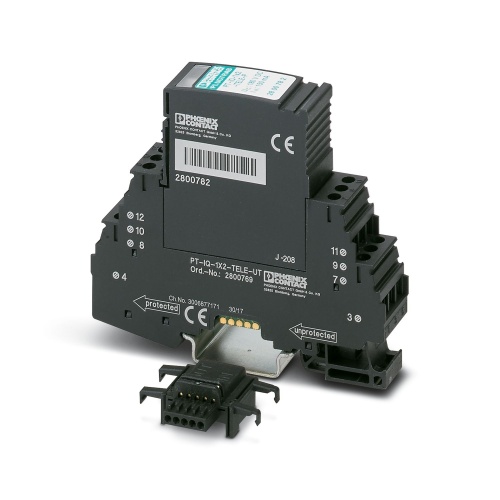

Phoenix Contact 2800769 Surge protection device PT-IQ-1X2-TELE-UT
Normally In Stock
PT-IQ-1X2-TELE-UT Phoenix 2800769 Surge protection for information technology 180 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$397.55
Sale Price
$331.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800769 A surge protective device is available as a plug and base element combination with a built-in multi-stage status indicator on the module, designed to safeguard a double wire for use in both analog and digital telecommunications applications such as VDSL up to 50 Mbps over short distances of less than 300 meters or up to 100 Mbps. This device can be integrated into safety-critical circuits with a SIL 3 rating.
Specifications
Max Discharge Capacity
80 A
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Fault Warning
Remote Indication Contact
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Base Element
Maximum Continous Voltage
500 Volt
Surge Protector Line Voltage
180 Volt
Component
Surge Protection Device
Features
Maximum ease of maintenance, thanks to the 2-piece design
Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Predictive monitoring with 3-stage LED display
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2800769 CAD data International.dxfPhoenix 2800769 CAD data International.pdfPhoenix 2800769 CAD data International.stpPhoenix 2800769 Flyer English-2.pdfPhoenix 2800769 Flyer English.pdfPhoenix 2800769 Manufacturers declaration English.pdfPhoenix 2800769 Manufacturers declaration International.pdfPhoenix 2800769 Package Slip International.pdfPhoenix 2800769 Product Information English.pdfPhoenix 2800769 Software International.zipPhoenix 2800769 Surge Protection English.pdfPhoenix 2800769 Tender Text English.zip
