PT 2-TELE-ST Phoenix Contact 2838733 Surge protection for information technology Surge protection plug
PT 2-TELE-ST Phoenix 2838733 Surge protection for information technology 185 VDC pluggable Surge protection plug Surge Protection
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $195.00
Sale Price:
$162.24

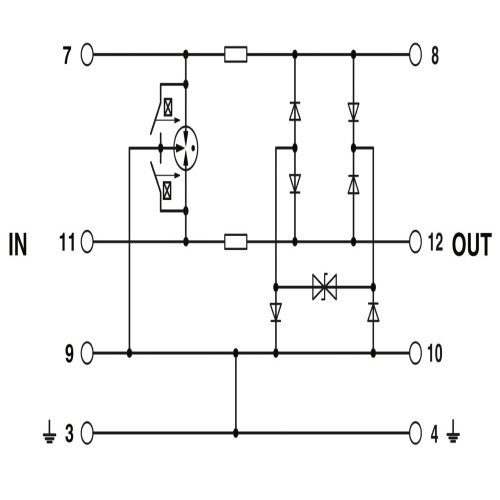

Surge protection plug for base element, for protecting a double conductor of analog telecommunication interfaces.
| Specifications | |
| Fault Warning | Optical |
| Arrester Class according to IEC | C1 |
| Arrester Class according to IEC | C2 |
| Arrester Class according to IEC | C3 |
| Arrester Class according to IEC | D1 |
| Fault Warning | multi-stage |
| Direction of Action | Line-Line |
| Direction of Action | Line-Signal Ground-Shield |
| Direction of Action | optional Signal Ground-Shield-Earth Ground |
| Manufacturer | Phoenix Contact |
| Connection Method | Screw connection |
| Surge Protector Type | Surge protection for measurement and control technology |
| Maximum Continous Voltage | 53 Volt |
| Nominal Discharge Current | 10 kA |
| Surge Protector Line Voltage | 185 Volt |
Customer Reviews
0.0
All Reviews

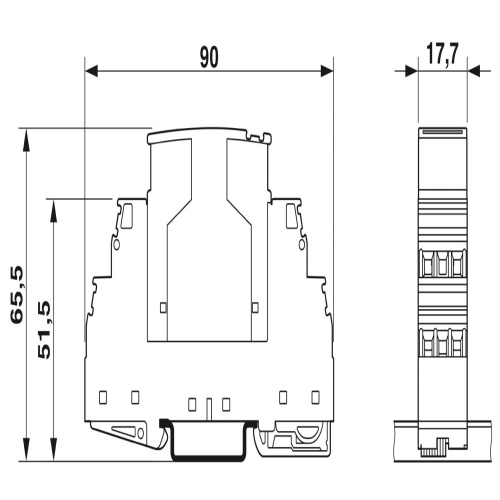

Phoenix 2838733 CAD data International.dxf
Phoenix 2838733 CAD data International.pdf
Phoenix 2838733 CAD data International.stp
Phoenix 2838733 Certification English.pdf
Phoenix 2838733 Flyer English.pdf
Phoenix 2838733 Manufacturers declaration International.pdf
Phoenix 2838733 Package Slip International.pdf
Phoenix 2838733 Product Information English.pdf
Phoenix 2838733 Software International.zip
Phoenix 2838733 Surge Protection English.pdf
Phoenix 2838733 Tender Text English.zip
