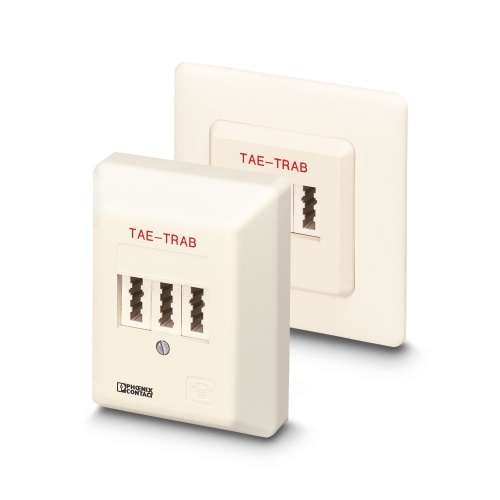

Phoenix Contact 2749628 Surge protection device TAE-TRAB FM-NFN-AP
Normally In Stock
Code: 72033
TAE-TRAB FM-NFN-AP Phoenix 2749628 Surge protection for information technology 60 VDC Screw connection & TAE 6,Screw terminal blocks,3x TAE-NFN Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$187.09
Sale Price
$155.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2749628 A TAE outlet box, also known as NFN, is a surface-mounting solution designed to provide surge protection for both analog and digital telecommunications interfaces, capable of supporting high-speed connections such as VDSL up to 50 Mbps on short distances less than 300 meters, and up to 100 Mbps.
Specifications
Arrester Class according to IEC
I
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
I - II
Arrester Class according to IEC
T1 - T2
Impulse Discharge Current
12.5 Ka
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Maximum Continous Voltage
75 Volt
Surge Protector Type
Arrester Combination
Nominal Discharge Current
12.5 Ka
Surge Protector Line Voltage
60 Volt
Component
Surge Protection Device
Features
Easy installation with surface mounting
No signal interference with adapted protective circuit
Easy connection via TAE socket
Downloads
Phoenix 2749628 CAD data International.dxfPhoenix 2749628 Certification English.pdfPhoenix 2749628 Flyer English.pdfPhoenix 2749628 Manufacturers declaration English.pdfPhoenix 2749628 Manufacturers declaration International.pdfPhoenix 2749628 Package Slip International.pdfPhoenix 2749628 Software International.zipPhoenix 2749628 Surge Protection English.pdfPhoenix 2749628 Tender Text English.zip
