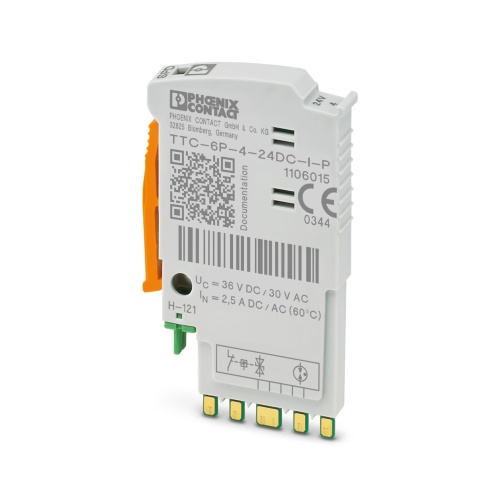

Phoenix Contact 1106015 Surge protection plug TTC-6P-4-24DC-I-P
Normally In Stock
Code: 72016
TTC-6P-4-24DC-I-P Phoenix 1106015 Replacement plug 24 VDC pluggable Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$238.51
Sale Price
$198.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1106015 A surge protection plug is available featuring an integrated status indicator, designed to handle high nominal currents in a four-wire floating signal circuit. It operates within a nominal voltage of 24 DC volts.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
10 Ka
Component
Surge Protection Plug
Features
Flexible choice: Push-in Technology or screw connection
Easy function monitoring: on-site or optionally via remote signaling, with optical monitoring, without additional effort
Servicing without affecting the signal: replace the surge protection module without affecting the measuring signal
Efficient use of space: the narrowest pluggable surge protection solution for 4-conductor applications
Downloads
Phoenix 1106015 Application Note English.pdfPhoenix 1106015 CAD data International.dxfPhoenix 1106015 CAD data International.pdfPhoenix 1106015 CAD data International.stpPhoenix 1106015 Certification International.pdfPhoenix 1106015 Flyer English-2.pdfPhoenix 1106015 Flyer English.pdfPhoenix 1106015 Manufacturers declaration International.pdfPhoenix 1106015 Surge Protection English.pdfPhoenix 1106015 Tender Text English.zip
