Code: 71798

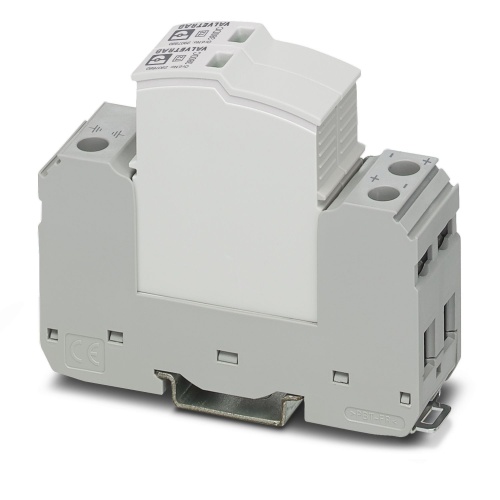

Phoenix Contact 2907876 Type 2 surge arrester VAL-SEC-T2-2+0-380DC-FM
Normally In Stock
VAL-SEC-T2-2+0-380DC-FM Phoenix 2907876 Surge arrester 350 VDC - 400 VDC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection
Condition: New
Usually ships Same Day or Next Day$327.91
Sale Price
$273.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907876 A pluggable surge protective device that meets type 2/class 2 standards is designed to protect DC power sources with linear operating characteristics, providing an added layer of safety and security by offering remote indication contact.
Specifications
Fault Warning
Optical
Combined Surge
6 Kv
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Maximum Continous Voltage
150 Volt
Nominal Discharge Current
3 Ka
Surge Protector Line Voltage
350 Volt - 400 Volt
Component
Surge Arrester
Features
More space in the control cabinet due to the narrow overall width of just 12 mm per position
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Extremely narrow design, just 12 mm per position
Varistor arrester with a low leakage current
Downloads
Phoenix 2907876 CAD data International.dxfPhoenix 2907876 CAD data International.pdfPhoenix 2907876 CAD data International.stpPhoenix 2907876 Flyer English-2.pdfPhoenix 2907876 Flyer English.pdfPhoenix 2907876 Manufacturers declaration English.pdfPhoenix 2907876 Manufacturers declaration International.pdfPhoenix 2907876 Package Slip International.pdfPhoenix 2907876 Surge Protection English.pdfPhoenix 2907876 Tender Text English.zip
