Code: 71786

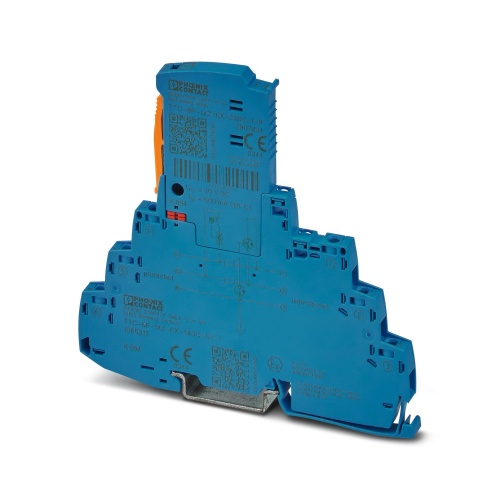

Phoenix Contact 1065312 Surge protection device TTC-6P-1X2-EX-24DC-UT-I
Normally In Stock
TTC-6P-1X2-EX-24DC-UT-I Phoenix 1065312 Surge protection for measurement and control technology 24 VDC Screw connection Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$208.98
Sale Price
$174.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

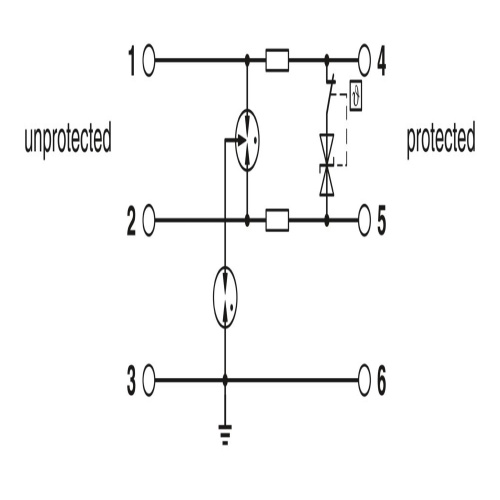

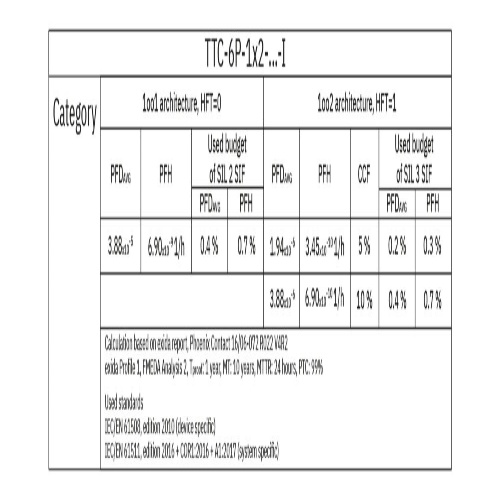

Phoenix Contact 1065312 The surge protection device includes a protective plug and base element, along with an integrated status indicator for a 2-wire floating Ex i signal circuit that can handle currents from 0(4) mA to 20 mA, making it compatible with HART technology, and suitable for use in safety-related circuits rated up to SIL 3.
Specifications
Fault Warning
Optical
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
6 Volt
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

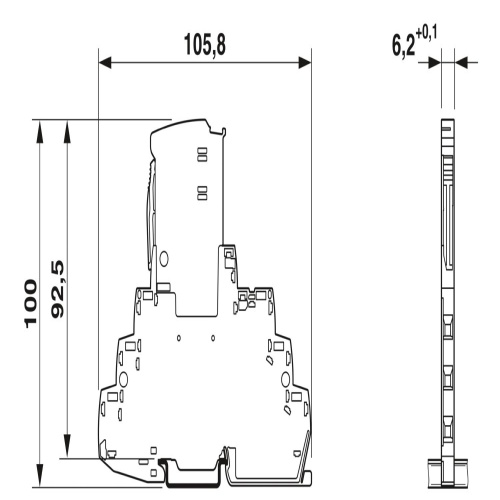

Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 1065312 Application Note English.pdfPhoenix 1065312 CAD data International.dxfPhoenix 1065312 CAD data International.pdfPhoenix 1065312 CAD data International.stpPhoenix 1065312 Certification English.pdfPhoenix 1065312 Certification International-2.pdfPhoenix 1065312 Certification International.pdfPhoenix 1065312 Flyer English-2.pdfPhoenix 1065312 Flyer English.pdfPhoenix 1065312 Manufacturers declaration English.pdfPhoenix 1065312 Manufacturers declaration International.pdfPhoenix 1065312 Package Slip International.pdfPhoenix 1065312 Surge Protection English.pdfPhoenix 1065312 Tender Text English.zip
