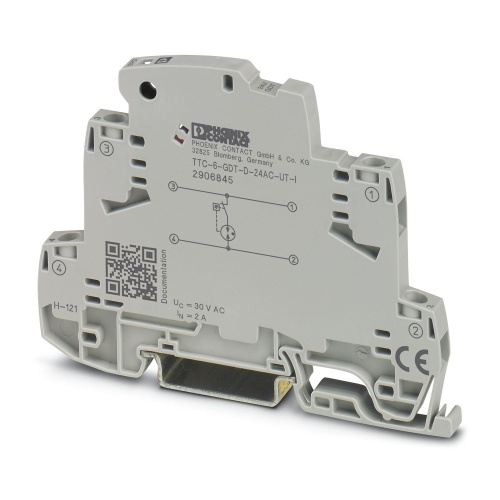

Phoenix Contact 2906845 Surge protection device TTC-6-GDT-D-24AC-UT-I
Normally In Stock
Code: 71777
TTC-6-GDT-D-24AC-UT-I Phoenix 2906845 Surge protection for measurement and control technology 24 VAC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$53.12
Sale Price
$44.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

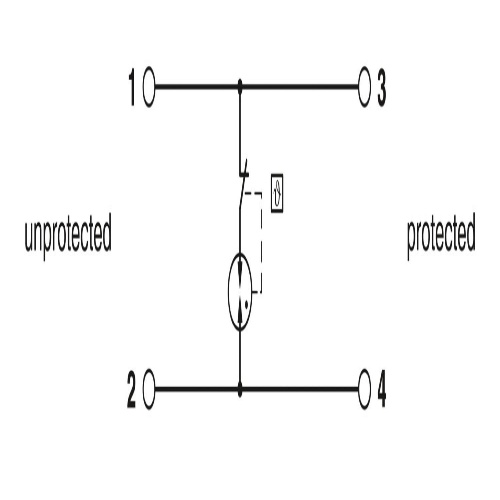

Phoenix Contact 2906845 A 2-wire floating signal circuit is protected by coarse surge protection with an integrated status indicator, suitable for use in safety-related circuits rated up to SIL 3.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
170 Amp
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
53 Volt
Component
Surge Protection Device
Features
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906845 Application Note English.pdfPhoenix 2906845 CAD data International.dxfPhoenix 2906845 CAD data International.pdfPhoenix 2906845 CAD data International.stpPhoenix 2906845 Certification International-2.pdfPhoenix 2906845 Certification International.pdfPhoenix 2906845 Flyer English-2.pdfPhoenix 2906845 Flyer English.pdfPhoenix 2906845 Manufacturers declaration English.pdfPhoenix 2906845 Manufacturers declaration International.pdfPhoenix 2906845 Product Information English.pdfPhoenix 2906845 Surge Protection English.pdfPhoenix 2906845 Tender Text English.zip
