Code: 71735

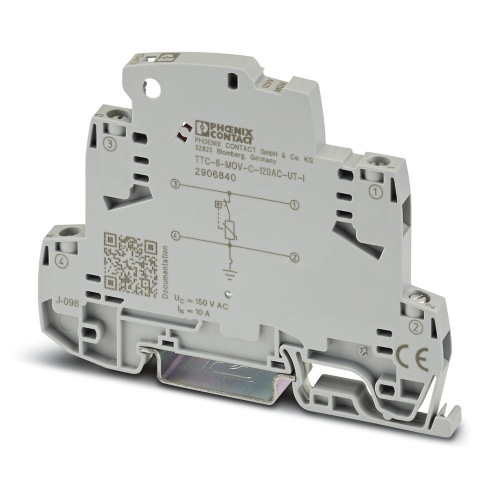

Phoenix Contact 2906840 Surge protection device TTC-6-MOV-C-120AC-UT-I
Normally In Stock
TTC-6-MOV-C-120AC-UT-I Phoenix 2906840 Surge protection for measurement and control technology 120 VAC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$30.64
Sale Price
$25.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2906840 A medium surge protection device with an integrated status indicator is available for use on a single signal wire, featuring a grounded reference potential, suitable for safe use in safety-related circuits up to SIL level 3.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
120 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
580 Volt
Nominal Discharge Current
15 Ka
Component
Surge Protection Device
Features
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906840 Application Note English.pdfPhoenix 2906840 CAD data International.dxfPhoenix 2906840 CAD data International.pdfPhoenix 2906840 CAD data International.stpPhoenix 2906840 Certification International-2.pdfPhoenix 2906840 Certification International.pdfPhoenix 2906840 Flyer English-2.pdfPhoenix 2906840 Flyer English.pdfPhoenix 2906840 Manufacturers declaration English.pdfPhoenix 2906840 Manufacturers declaration International.pdfPhoenix 2906840 Product Information English.pdfPhoenix 2906840 Surge Protection English.pdfPhoenix 2906840 Tender Text English.zip
