Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 71729

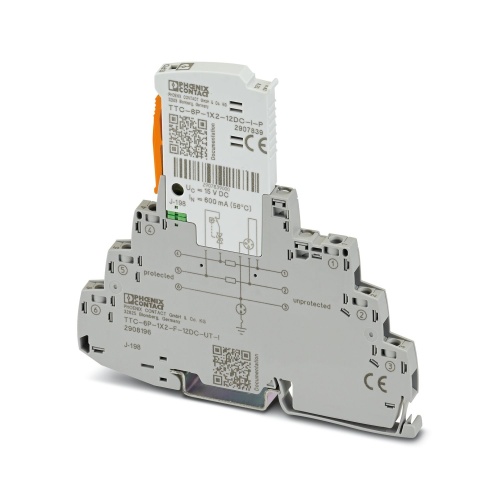

Phoenix Contact 2908196 Surge protection device TTC-6P-1X2-F-12DC-UT-I
Normally In Stock
TTC-6P-1X2-F-12DC-UT-I Phoenix 2908196 Surge protection for measurement and control technology 12 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$317.02
Sale Price
$264.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

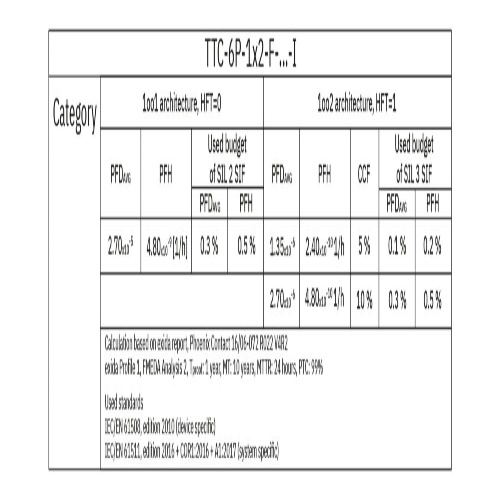

Phoenix Contact 2908196 A surge protection system comprises a protective plug and a base element with an integrated status indicator, designed for use in 2-wire floating signal circuits that utilize indirect grounding through a gas discharge tube, and can be employed in safety-critical applications up to SIL level 3.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
350 Volt
Max Discharge Capacity
40 A
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2908196 Application Note English.pdfPhoenix 2908196 CAD data International.dxfPhoenix 2908196 CAD data International.pdfPhoenix 2908196 CAD data International.stpPhoenix 2908196 Certification International-2.pdfPhoenix 2908196 Certification International.pdfPhoenix 2908196 Flyer English-2.pdfPhoenix 2908196 Flyer English.pdfPhoenix 2908196 Manufacturers declaration English.pdfPhoenix 2908196 Manufacturers declaration International.pdfPhoenix 2908196 Surge Protection English.pdfPhoenix 2908196 Tender Text English.zip
