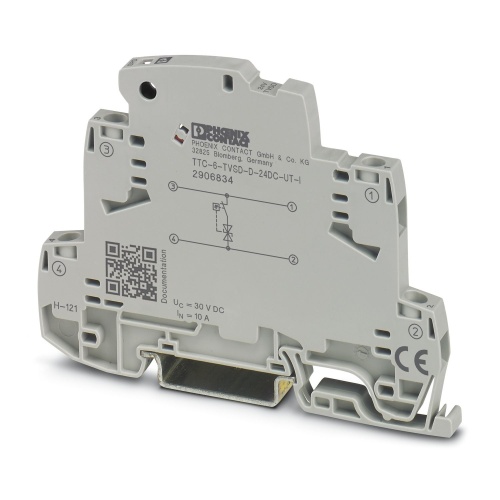

Phoenix Contact 2906834 Surge protection device TTC-6-TVSD-D-24DC-UT-I
Normally In Stock
Code: 71696
TTC-6-TVSD-D-24DC-UT-I Phoenix 2906834 Surge protection for measurement and control technology 24 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$26.27
Sale Price
$21.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

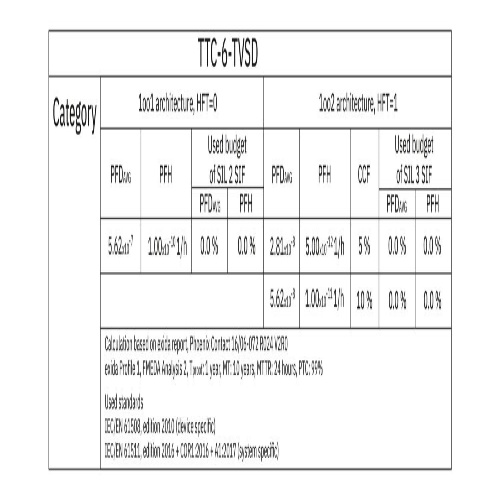

Phoenix Contact 2906834 This surge protection unit is designed to safeguard against electrical surges and can be easily monitored through its built-in status indicator, making it ideal for use in critical applications requiring SIL 3 compliance on single 2-wire floating signal circuits.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C3
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
310 Amp
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Component
Surge Protection Device
Features
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906834 Application Note English.pdfPhoenix 2906834 CAD data International.dxfPhoenix 2906834 CAD data International.pdfPhoenix 2906834 CAD data International.stpPhoenix 2906834 Certification International-2.pdfPhoenix 2906834 Certification International.pdfPhoenix 2906834 Flyer English-2.pdfPhoenix 2906834 Flyer English.pdfPhoenix 2906834 Manufacturer's declaration English.pdfPhoenix 2906834 Manufacturer's declaration International.pdfPhoenix 2906834 Manufacturers declaration English.pdfPhoenix 2906834 Manufacturers declaration International.pdfPhoenix 2906834 Product Information English.pdfPhoenix 2906834 Surge Protection English.pdfPhoenix 2906834 Tender Text English.zip
